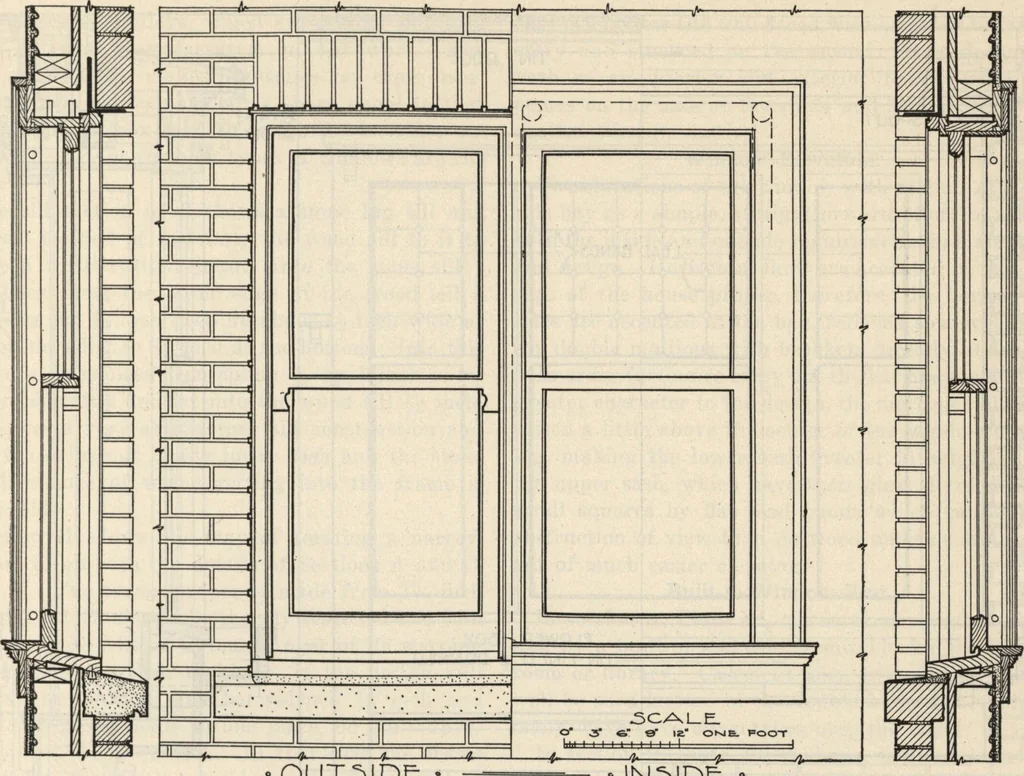

ing omitted, which would leave 2%inches for the box. The outside stop would thenextend up to the brick work, making it 1% by 2inches, or the face of the pulley stile would be set1% inches from the brick jamb. Sash Weights In Side Boxes. Where the window opening is too narrow to allowa box mullion,… … •OUT^IDE. IN5IDE. • OLCTIONA- _LVAT!ON»0P WINDOW ^ — **~ 3LCTION 5
