Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 381

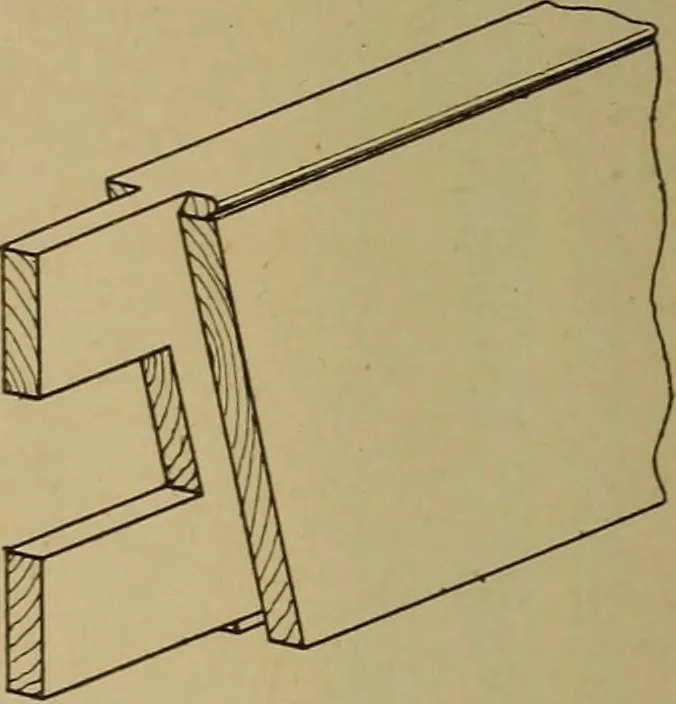

hich may be taken out in twopieces. Perhaps a better method is to cutoff from one edge of the board a long strip,as shown at a (Fig. 1167). The more generalmethod in trying up the stiles is to first trueup the face sides ; then the back edges areshot straight and also square to these sides,and then… … Fig. 1166.—Completed End of Middle Rail. the stiles are sometimes gauged and worked,but perhaps the better plan is to leave thisoperation until after the stiles have been setout and mortised. When all the stuff forthe framework of the door has been truedup, the setting out would be proceeded…
Carpentry · Joinery
