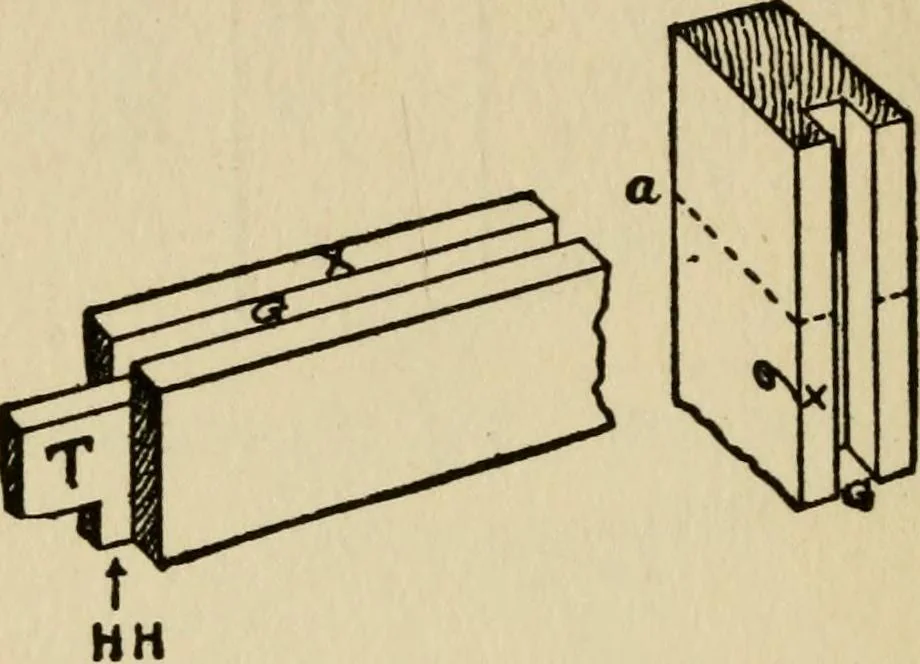

as Figs. 185 and 186, where theedges of the frames are grooved to receive panels, etc.,the width of the tenon is reduced by the width of thegroove. 75 Joints in Woodwork This must be remembered by the worker when markingout his stiles with the marking knife. Fig. 185 (right-hsindsketch) shows the… … Fig. 186.—Haunching with Groove above. inside work ; but if for outside work they are generallysmeared with thick paint and wedged up. For light-classcabinet work it is usual to cut the mortise about seven-eighths of the distance through the stile and make thetenon to match it; the edge of the…
