Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 438

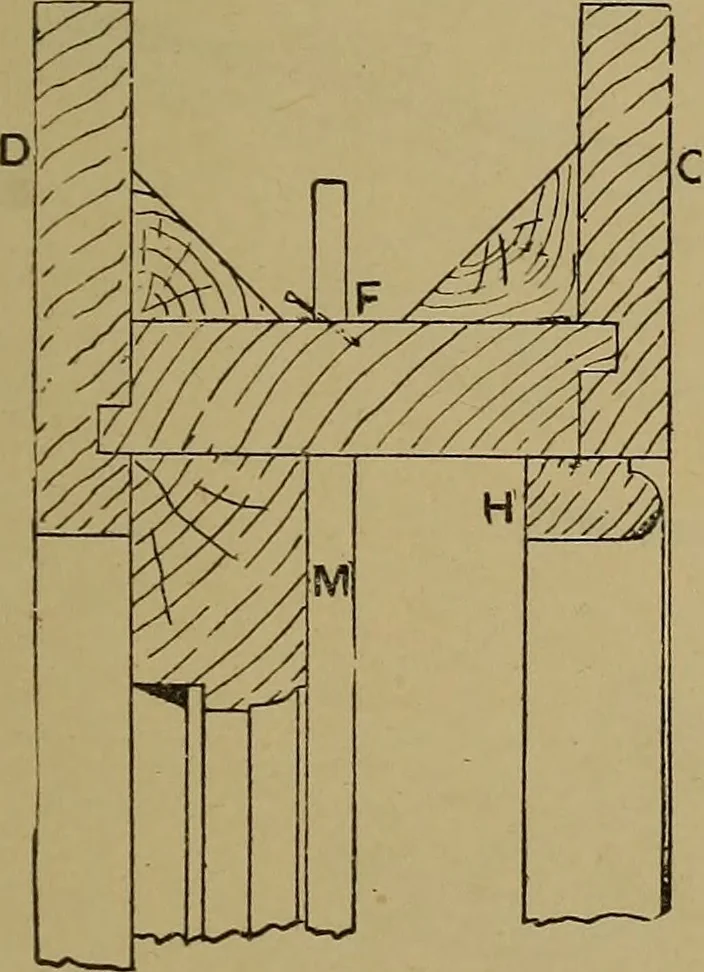

Fig. 1315.—Enlarged Detail through PulleyStile, etc. j |-in. board with a TVin- bead plane, gauged; to | in. wide, and mulleted to f- in. tight., The guard beads can be worked on the facei of a lj-in. board with a -f-in. bead plane asshown at Fig. 1321, then sawn just outside … Fig. 1316.—Enlarged Detail at Head. the quirk and planed to it, or on the edge ofa f-in. board, as indicated at Fig. 1322, andthen cut off IJin. wide, and planed to thequirk for thickness. Setting Out the Frame.—Lay the sill onthe width rod with the face upwards andthe face edge inwards. The sill…
Carpentry · Joinery
