Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 450

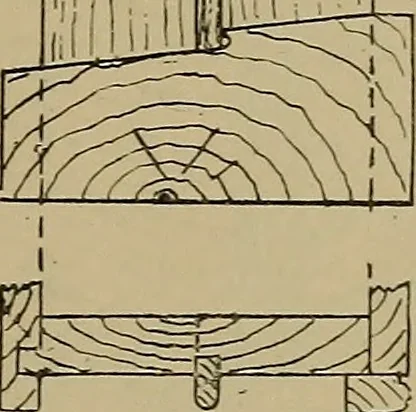

and full linesat e on elevation, Fig. 1370) as far as theoutside of the groove of the parting bead ;set a cutting gauge to this distance, andgauge the backs as deep as the cutter willallow. Fix the stiles one at a time in thebench-screw, and, with a fine tenon orcarcase-saw, accurately saw down… … &- FV5A. D Fig. 1371. m 2§ Fig. 1372. Figs. 1370 to 1372.—Part Plan, Elevation, and Section of Pulley Stile, showing Sash Frame Pocket at Side. an ordinary lj-in. firmer chisel, but having athin, well-tempered blade) a few times up thelength of the pocket, the outside edge ofthe parting-bead…
Carpentry · Joinery
