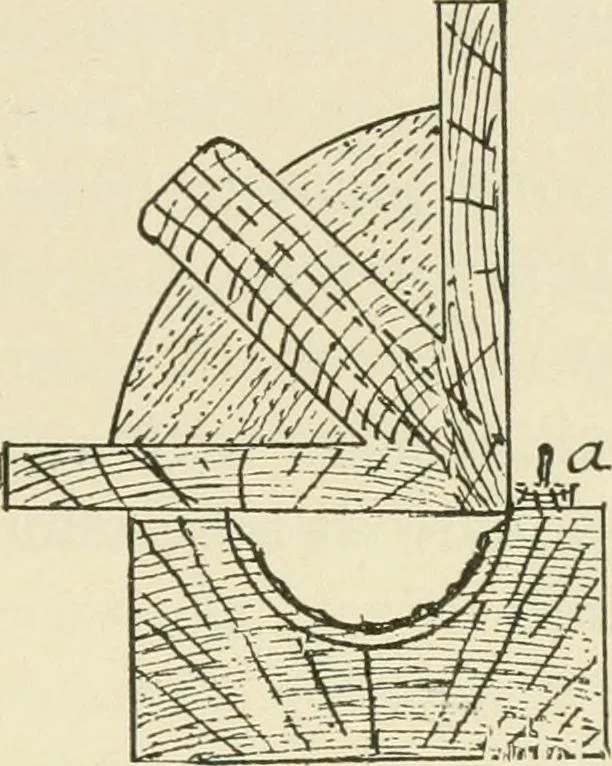

ch a way thatthe fingers of the left hand will form a guide to keep theplane to the line, cut a shaving along the line on the side SPECIAL TYPES OF PATTERNS 73 farthest from the operator. This is illustrated by Fig. 41,in which the upper curved line represents the work asdone by the gouge, and the… … Fig. 41. out the length of the block, cutting a shaving at eachstroke. This may be continued until about one-third ofthe whole is worked out. Now the block may be turnedend for end, and the other side treated in the same waydown to about midway of the distance; then turn theblock again and finish…
Patternmaking
