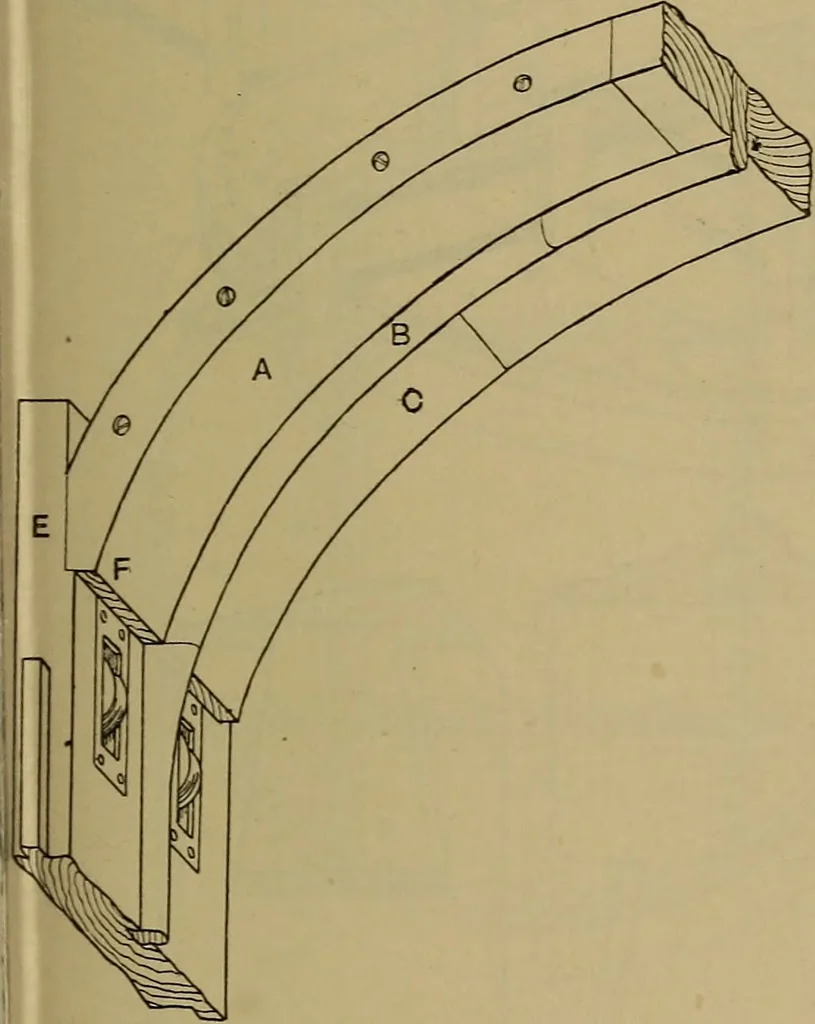

ling or handrail screws. In side, and planed true with a compass plane.The pieces to form the parting bead shouldbe similarly treated. The head just abovethe springing is secured to the pulley stileswith screws as indicated at e (Fig. 1498).It will be seen that the head does not finishat the… … Fig. 1497.—Portion of Soffit of Headof Frame, and its Junction withFace of Pulley Stile. this method a plough groove is worked outof the solid to receive the parting bead,which also is worked out of the solid. Anothermethod, which is equally good, is to formthe head in three laminations, as…
