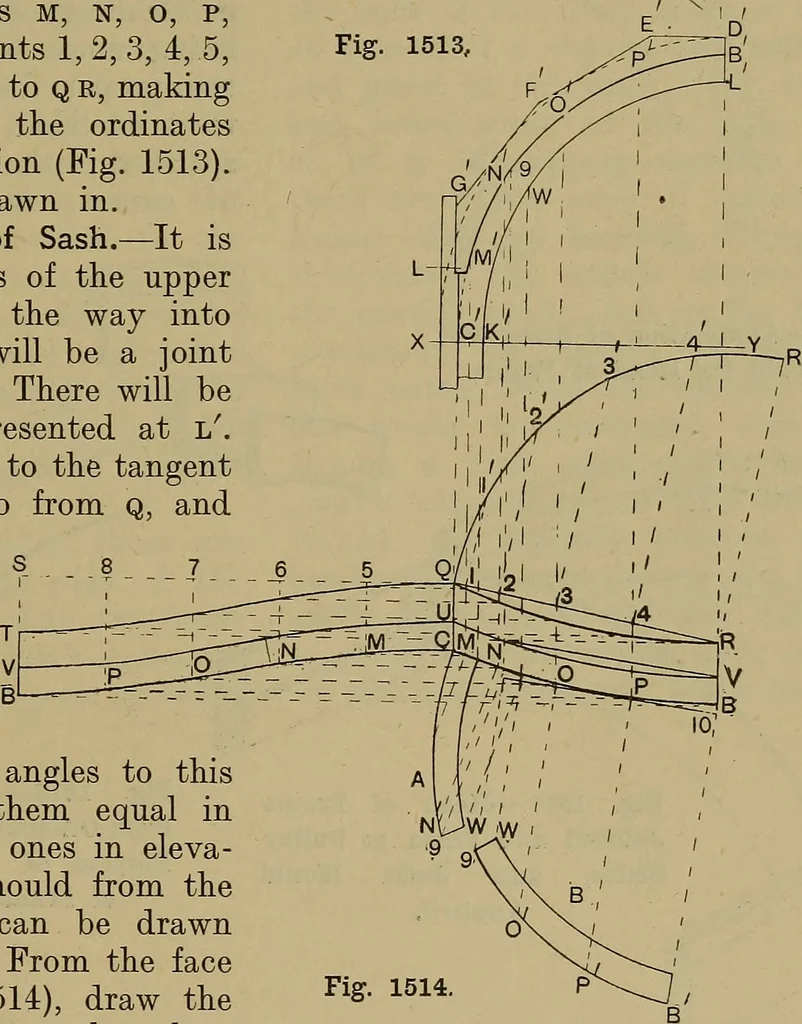

he face mould bcan be obtained as previously explained,the joints being shown at c w and b. Preparing the Head.—Probably the mostsatisfactory way of making the head ofthe sash frame is to prepare it in two piecesout of the solid, with a joint at the crown,held together by one or two handrailscrews,… … Fig. 1515. r § - - - 1 Fig. 1514 as shown by the dotted lines f. Assumingthat the two pieces to form the head havebeen sawn out, and the soffit planed trueto the face-mould lines, the joints made,and the head fitted and screwed to thepulley stiles as shown at Fig. 1517, thesoffit mould can be…
