Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 541

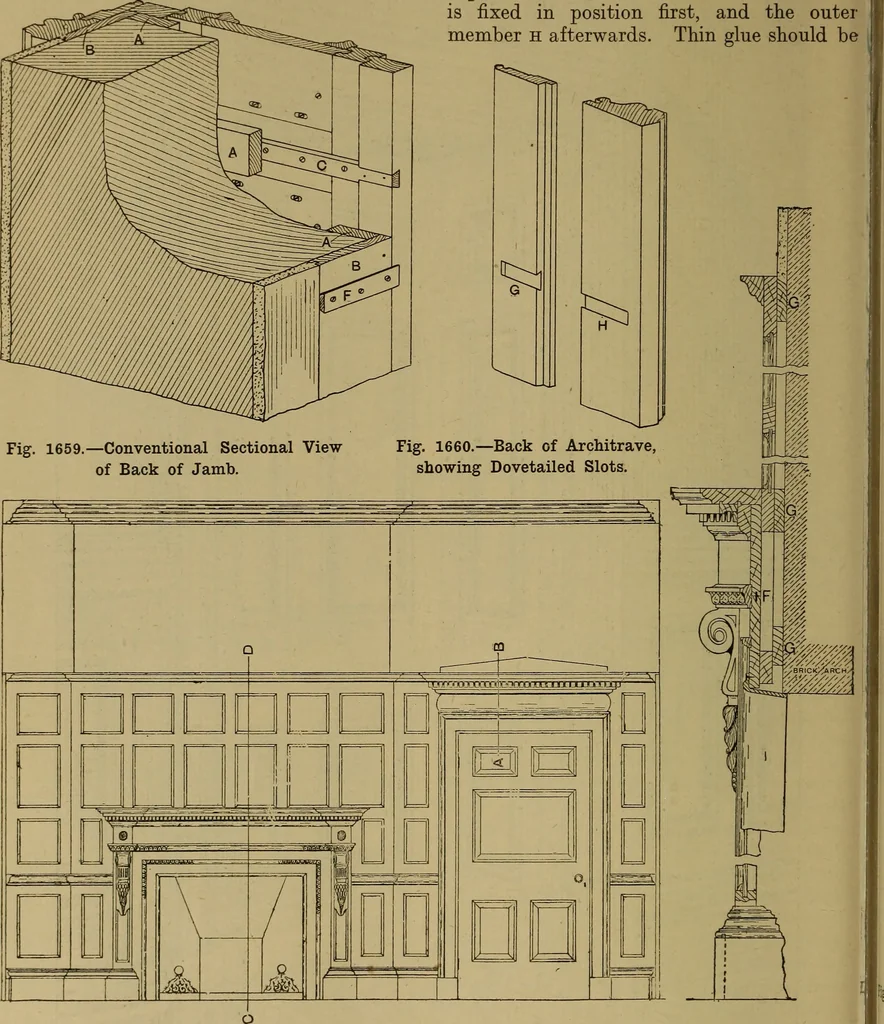

22 Fig. 1658.—General View of Door. 506 CARPENTRY AND JOINERY. traves are fixed by preparing hardwoodstrips with dovetail edges as represented the architrave as shown at G and h (Fig.1660), so as accurately to fit the dovetailslips. The inner member of the architraveis fixed in position first, and… … Fig. 1661.—Panelled Wainscoting : End Wall showingFireplace and Doorway. Fig. 1662.—Enlarged Part Sectionon Line C D (Fig. 1661). at f (Fig. 1659). Corresponding slots are brushed on the dovetailed slips and groove,made in the back of the two parts forming and, along the tongue edge of the inner…
Carpentry · Joinery
