Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 550

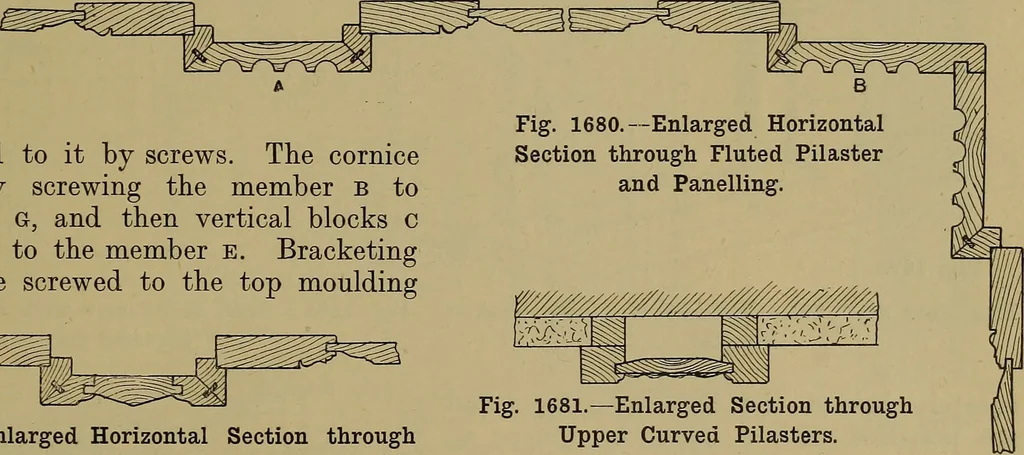

Figs. 1677 and 1678.—Method of Fixing Main Cornice under Cove of Ceiling. … and is fixed to it by screws. The corniceis fixed by screwing the member b tothe ground G, and then vertical blocks care screwed to the member e. Bracketingpieces d are screwed to the top moulding Fig. 1679.—Enlarged Horizontal Section throughLower Panel of Pilaster. as indicated, and should also…
Carpentry · Joinery
