Lettering for draftsmen, engineers and students; (1897)
Reinhardt, Charles William, 1858- [from old catalog] · New York, D. Van Nostrand company · leaf 27

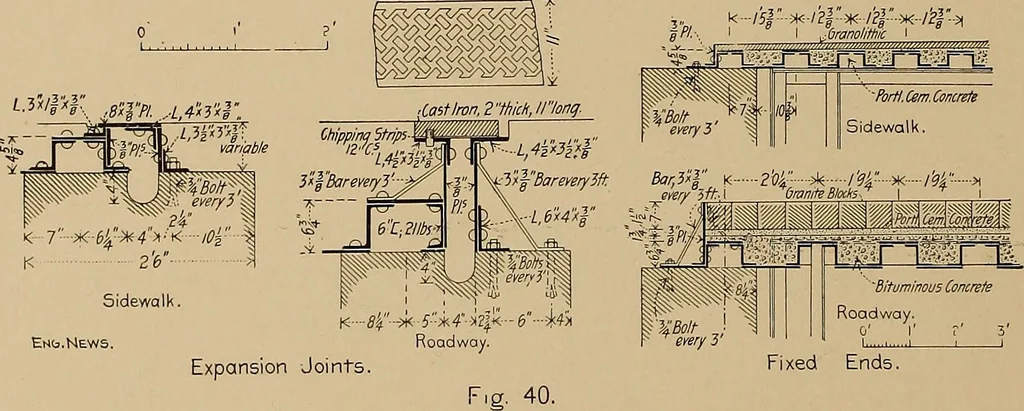

ttering as applied to working drawings, should be side, and a dotted reference line with arrow head point-bold, clear and uniform in size, withthe exception of the sub-captions, whichmay be a trifle larger. Diminutive andcramped lettering on a drawing willnever look well. If possible, the… … 22 ing to the subject attached, as shown especially in Figs.40, 41 and 42. The lettering should be placed so as toread from the baseand rig^ht hand sideof the sheet, thatis to say, lettering runninof at an ano-leof 90° to the baseline should be madeto read from theright and side, ifat a greater…
Lettering
