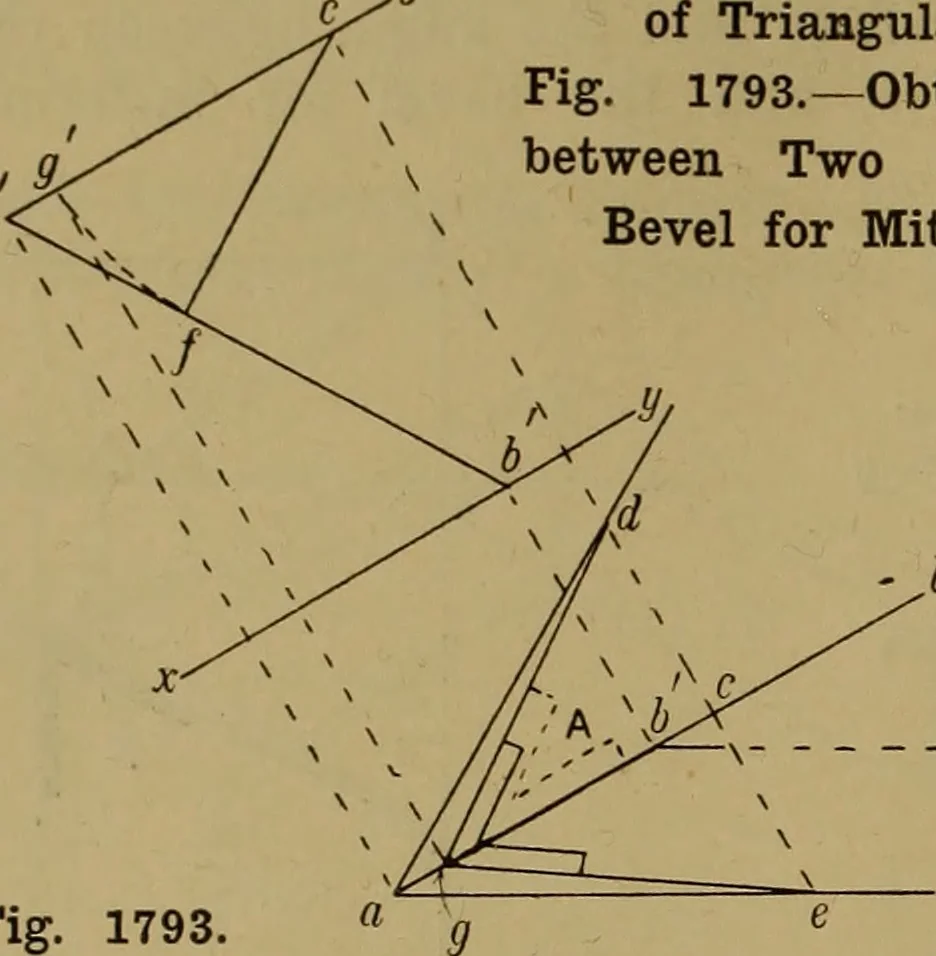

. 1793).From any convenient point in a br set outa line at right angles meeting a o in c.Now imagine this line c! f to represent a 554 CARPENTRY AND JOINERY. plane at right angles to a b; projectingdown from c, it will be clear that this planewill cut the top arrises of the surfaces asshown in plan… … Fig. 1792.—Plan and Elevation of Triangular Hopper. Fig. 1793.—Obtaining Angle between Two Surfaces and Bevel for Mitered Edges. Fig. 1793. the plane fitting between the two surfacesfrom d and e will be triangular in shape.An edge view of this triangular portionof plane is represented by c /.…
