Practical mechanical drawing and machine design self taught .. (1907)
Westinghouse, Charles. [from old catalog] · Chicago, F. J. Drake & co. · leaf 62

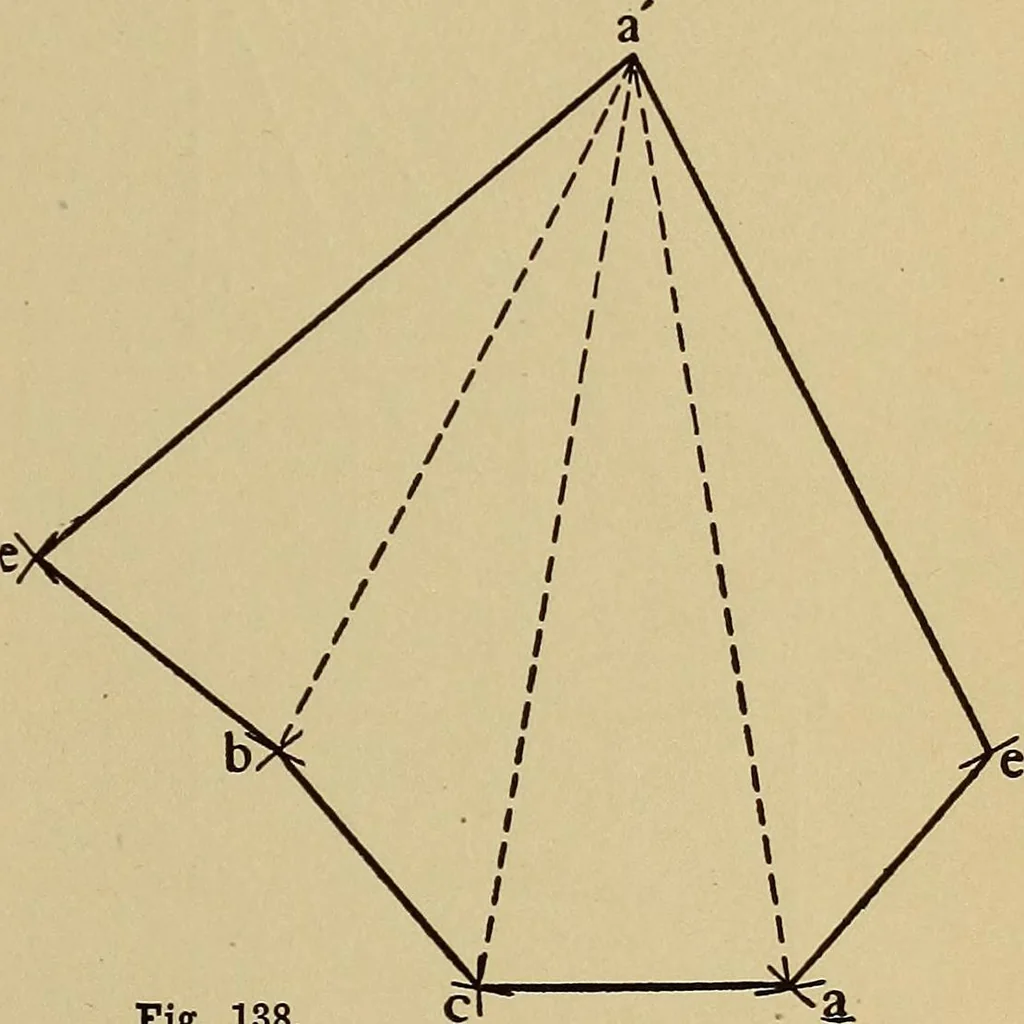

Fig. 137. tion, then carry the length ab, Fig. 135, from 1 tok in Fig, 136. Draw through k the line no paralleltO hg. Then take the kl, Fig. 135, and mark off thesame from k to^ n and from k to o, and draw the lines hn and go. Proceed in the same manner todraw the remainder, which will complete… … Fig. 138, Take the length ac in Fig. 137, and with it strikethe radius ac in Fig. 138. With the length ab inFig. 137, strike the radius ab in Fig. 138. Takethe length of one side as ba in Fig. 137, and set itoff from e to a, and from a to c, from c to b, and 60 MECHANICAL DRAWING from b to e.…
Mechanical drawing · Machine design
