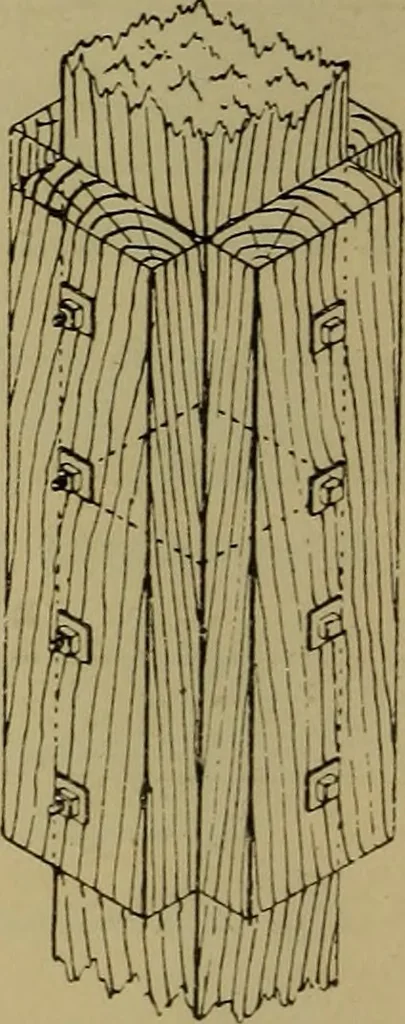

Fig. 233.—Splayed Scarf. strain is the fished joint with oblique keys(Fig. 219). Joints suitable for tension,compression, and cross strain are as followsFished and tabled (Figs. 220 and 221)tabled scarf, with keys and plates (Fig. 222) Fig. 234.—Single Fished Fig. 235.—Double FishedButt Joint when…
