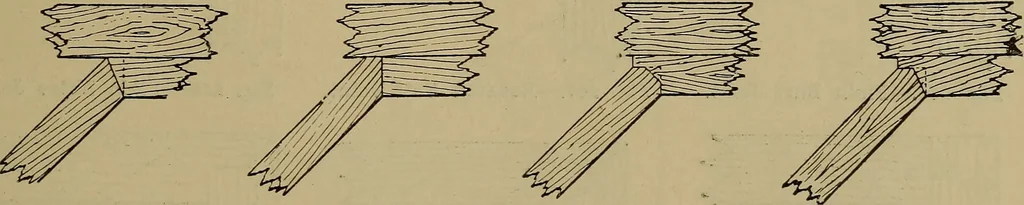

Fig. 249. Fig. 250. Fig. 249.—Strut and Post Joint Supported by Cleat Spiked to Post. Fig. 250.—Brace and Post Joint. Brace Tenoned into Post: Cleat Joggled in and Spiked to Post. Right Angle Joints.—Fourteen styles ofangle joints are shown by Figs. 266 to 279. Obtuse Angle Joints.—Four kindsof… … Fig. 251. Fig. 252. Fig. 251.—Mitred Butt and Tenoned Joint betweenBrace and Straining Piece. Fig. 252.—Double Abutment Joint between Strut,Head, and Straining Piece. Figs. 255 to 265. Matchboarding is thinstuff with a tongue and bead worked on oneedge and a groove on the other, so that when Fig.…
