Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 89

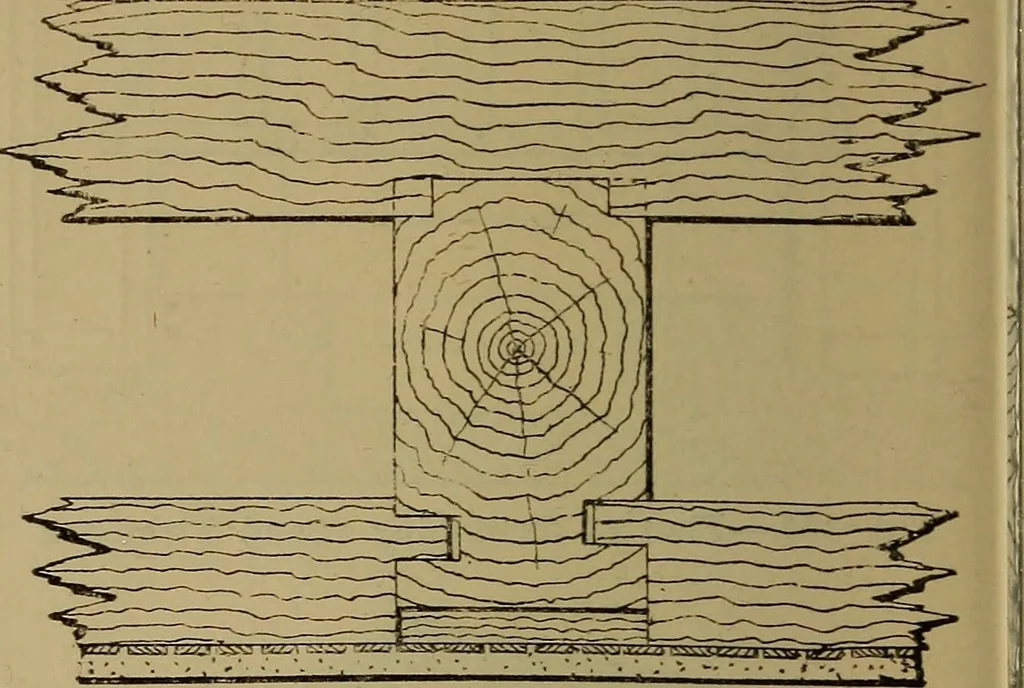

GING Fig. 325.—Plan of Binder or Double Floor. 34 ft. 9 in. long ; therefore all, or the greaterpart, would have to be formed of two lengthsand halved on the middle bearing ; alterna-tive methods of doing this are shown byFigs. 318 and 319. parallel with the chimney-breast, and the itrimmers which… … Fig. 327.—Section through Binder showing Bridging Joists Cogged, and Alternative Methods of Connection with Ceiling Joists. it. Fig. 321 is a section through the trim-mer, hearth, coach head brick arch, etc.,shown in plan at Fig. 320. s (Fig. 321) isa feathered-edge piece of board (a…
Carpentry · Joinery
