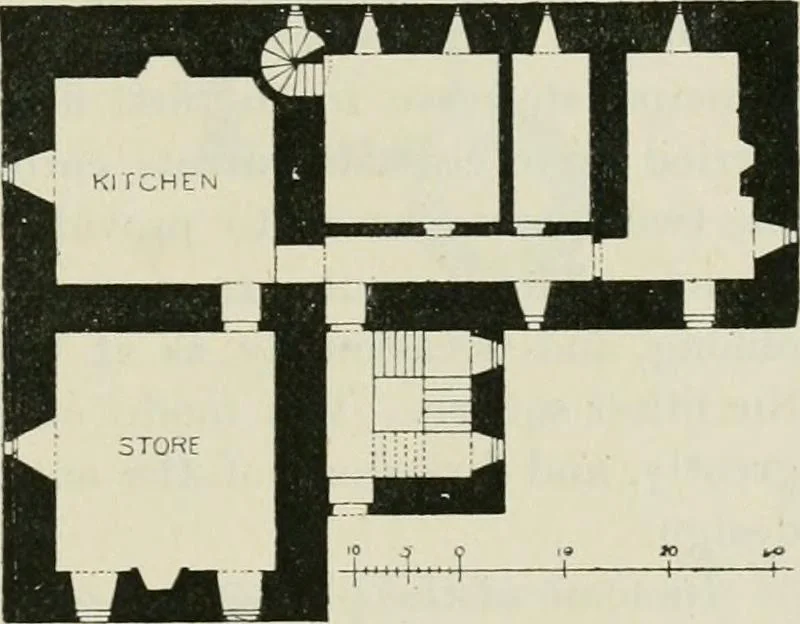

l. The porch shownin the sketch is modern. The other arrangements of the ground floor,including the ordinary private stair to the wine-cellar, are also verysimilar. On the upper floors the general disposition of the apartmentswas the usual traditional one, viz., the hall, withdraAving-room,… … Fig. 063.—lunes House. Plan of Ground Floor. FOURTH PERIOD 204 Z PLANS FOURTH PERIOD—Z PLANS. The next series of castles we have to consider are those built on whatwe have ventured to call the Z plan. These consist of the usual oblongmain block, representing the original keep, with a tower added at…
