A catechism of the steam engine in its various applications to mines, mills, steam navigation, railways, and agriculture. With practical instructions for the manufacture and management of engines of every class (1864)

Bourne, John · New York, D. Appleton & co. · leaf 348

An illustration from A catechism of the steam engine in its various applications to mines, mills, steam navigation, railways, and agriculture. With practical instructions for the manufacture and management of engines of every class, 1864, leaf 348

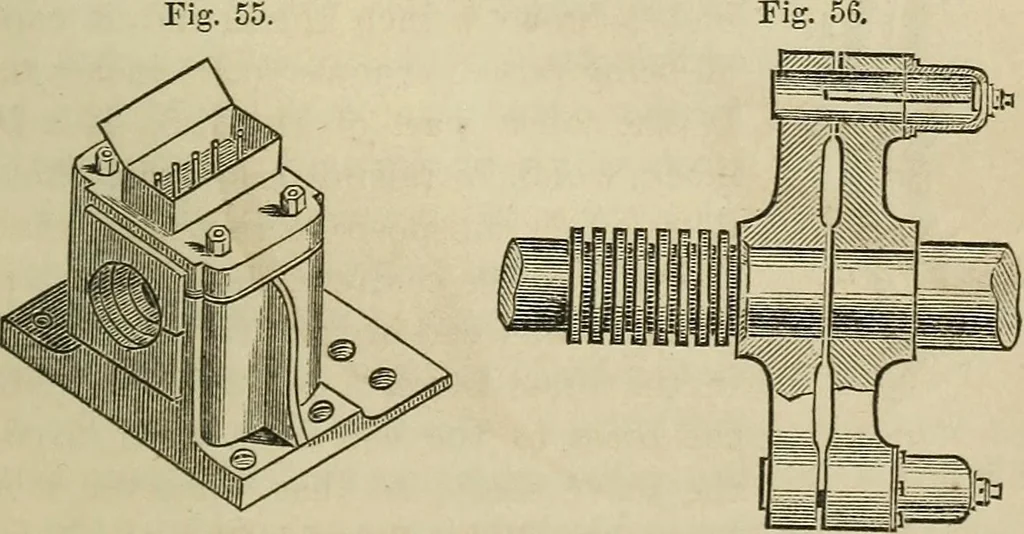

ately above the shaft on the one side of the discs, and theother piston rod passes immediately below the shaft on theother side of the discs. A short piece of one piston rod isshown in fig. 54. 652. Q.—How is the thrust of the screw shaft received ? A.—The thrust of the screw shaft is received upon… … TupaST Beauing.Messrs. Bourne & Co. Coupling Cp^vnks.Messrs. Bourne & Co. peller to be disconnected from the engine, so that it may revolvefreely when the vessel is under sail, is shown in fig. 56. When 332 bournes direct acting screw engine. Fig. 57. it is required to disengage the…
