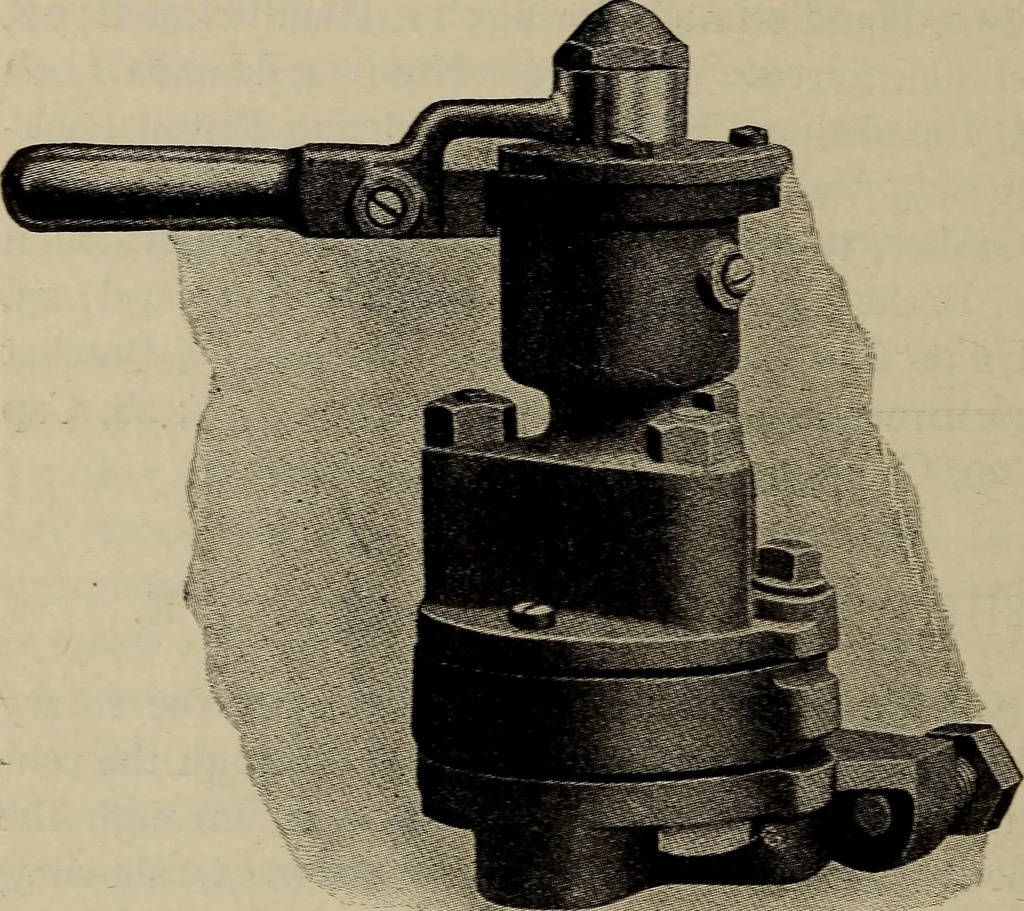

valve. Port d leads to that portion ofthe application-chamber pipe which connects the dis- 706 LOCOMOTIVE ENGINEERING tributing valve. Port h3 in the center, is the exhaust portleading directly to the atmosphere. Exhaust cavity g inthe rotary valve is always in communication with ex-haust port h.… … FIG. 314. THE INDEPENDENT tiRAKE VALVE to the chamber above the rotary valve, thus keeping itto its seat. Port f in the rotary valve consists of twocircular openings in the face joined by a cylindrical pas-sage over the top of cavity g. Running Position. This is the position that theindependent…
