Central station experiences, a series of narratives on the trials and tribulations of a steam engineer while learning to run an electric station; (1901)
New York, Power Publishing Co. · leaf 19

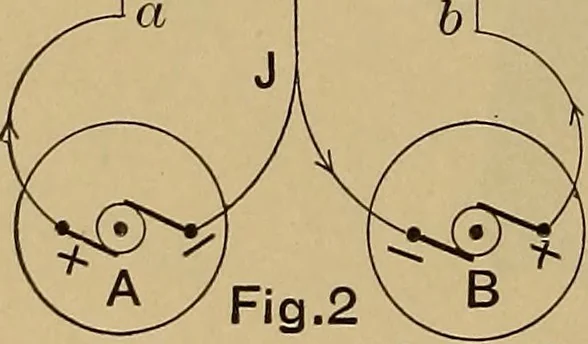

Fig. 2 ; see anything wrong about it?The outside wires are both positive. Yes; so the neutral is not neutral at all, but has to serve as anegative return wire for both of the outside wires P, P. This isbecause dynamo A is reversed.Like mine was ? Just exactly. Now, assume the same resistances you… … Excessive Drop in Three-Wire Circuits. i3 II 15-^^, volts. 15 ^% volts total. Yes. Now your case was worse. Your neutral feeder wasdesigned for only J of the t9tal load instead of f, because all of Your main feeder has a resistance of about j-^ ohm in eachbalance. What is your load on dynamo No. i…
Electric power-plants
