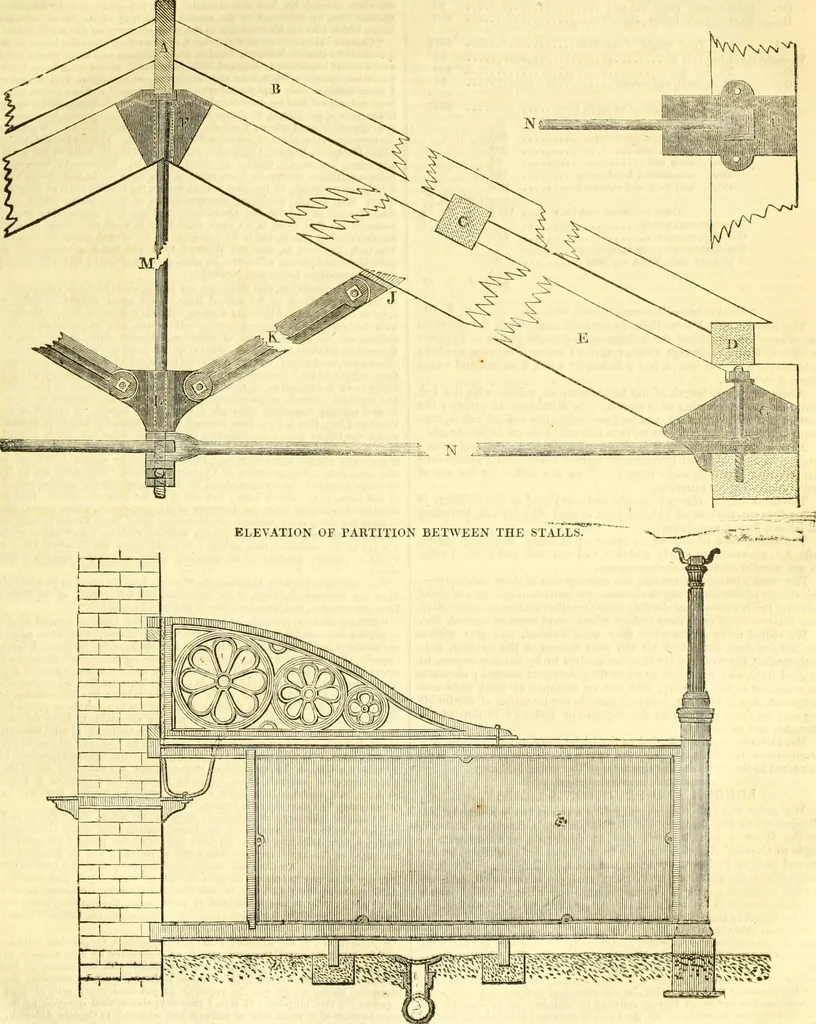

THE CIVIL ENGINEER AND ARCHITECTS JOURNAL 49 SECTION OF HOOF AT LARGE. … t22ffi*3 Scale half an inch to one fool- 50 THE CIVIL ENGINEER AND ARCHITECTS JOURNAL. WEIGHT OK IRON-WORK TO ROOF. lbs. Cast-iron king-head f 4o Do. Abutment joint i 23J Dp. Shoe <., each HI//»»., the two 122 Do. Hate J, each 13/As. the two 26 Do. Strut K, each 1II3///S., the two 200 Total…
