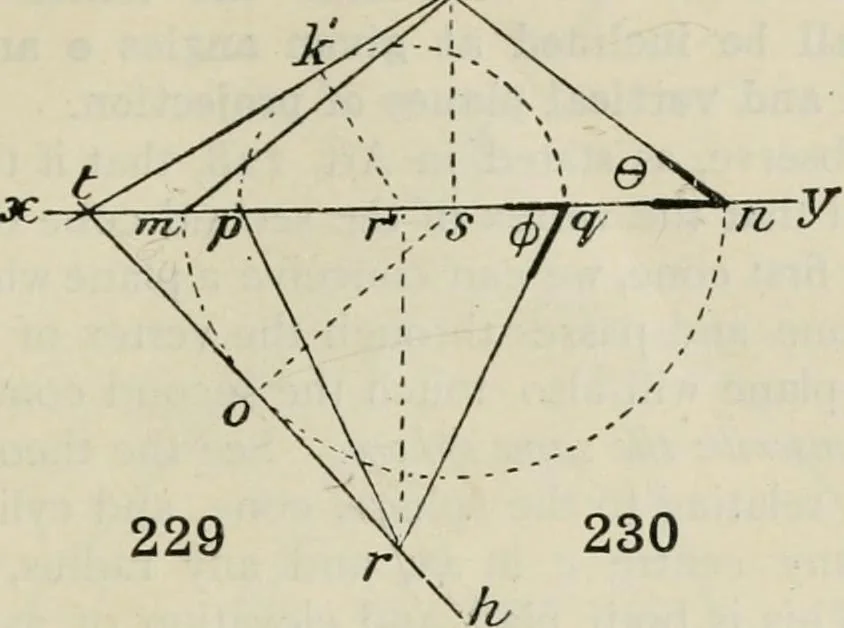

te the second, by turning it into a position so as to reversethe planes of projection. And the construction given for the first willalso serve to illustrate the second, if it be read with the page upsidedown, so as to reverse the traces of the plane. Method 3.—The construction for the rabatments of… … 230. Problem.—Having given one trace of a plane, andalso the inclination of the plane to one of the planes ofprojection, to find the other trace. Let the horizontal trace th be given, and also 8, theinclination of the plane to the ground. Take any point j- in xy, and with centre .f describe the…
