Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 156

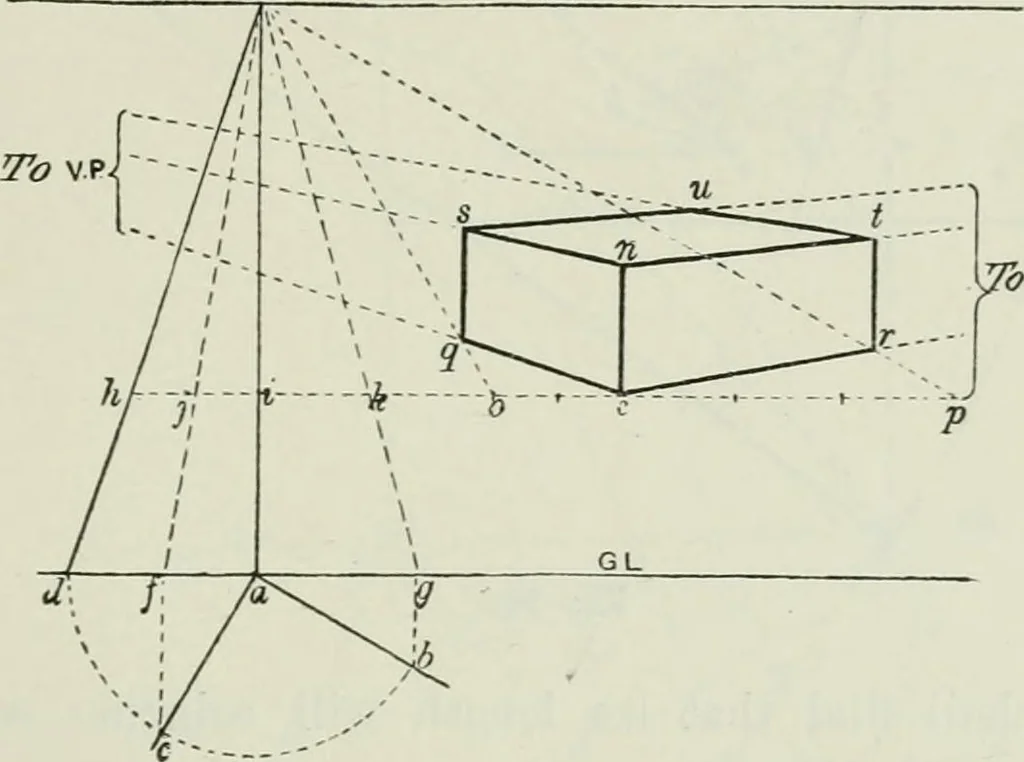

from P.P. = 8. Height of eye = 3. Scale J = 1.Fig. 101. Find the V.P.s as described in the preceding Prob. With SPECIAL PROBLEMS 133 (I as centre, and a radius of one foot, draw an aie cutting theplan of the given angles in h and <\ and the G.L. in d. Draw lines from c and li, at light angles to… … Fi- 101 and o(j are perspective scales for the picture size of the Ieetreceding respectivel} to the left and right. Find the position of the nearest angle of the object c(Prob. 5). Draw a horizontal line through e. Draw the perpendicular en equal to M, and draw lines frome and a to each V.P. Set…
Perspective
