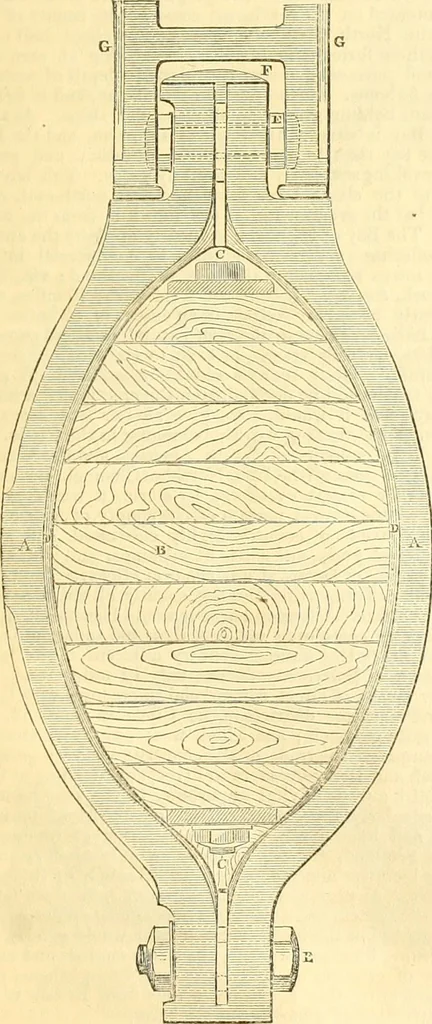

~i Fi^. 10. Sfctiou of the Fdh u;)on au er.larged S^-ale. … BRIDGE OF THE CARROUSEL AT PARIS. REFERENCES TO THE DRAWINGS. Fig. 1. Elevation of one of the side arches, span, 156 feet; rise, 15 feet 6inches ; and width of pier, 13 feet. Fig. 2. Section cf the arch, and elevation of pier, breadth of roadway, 17feet, and two foot-paths, each 9 feet; total…
