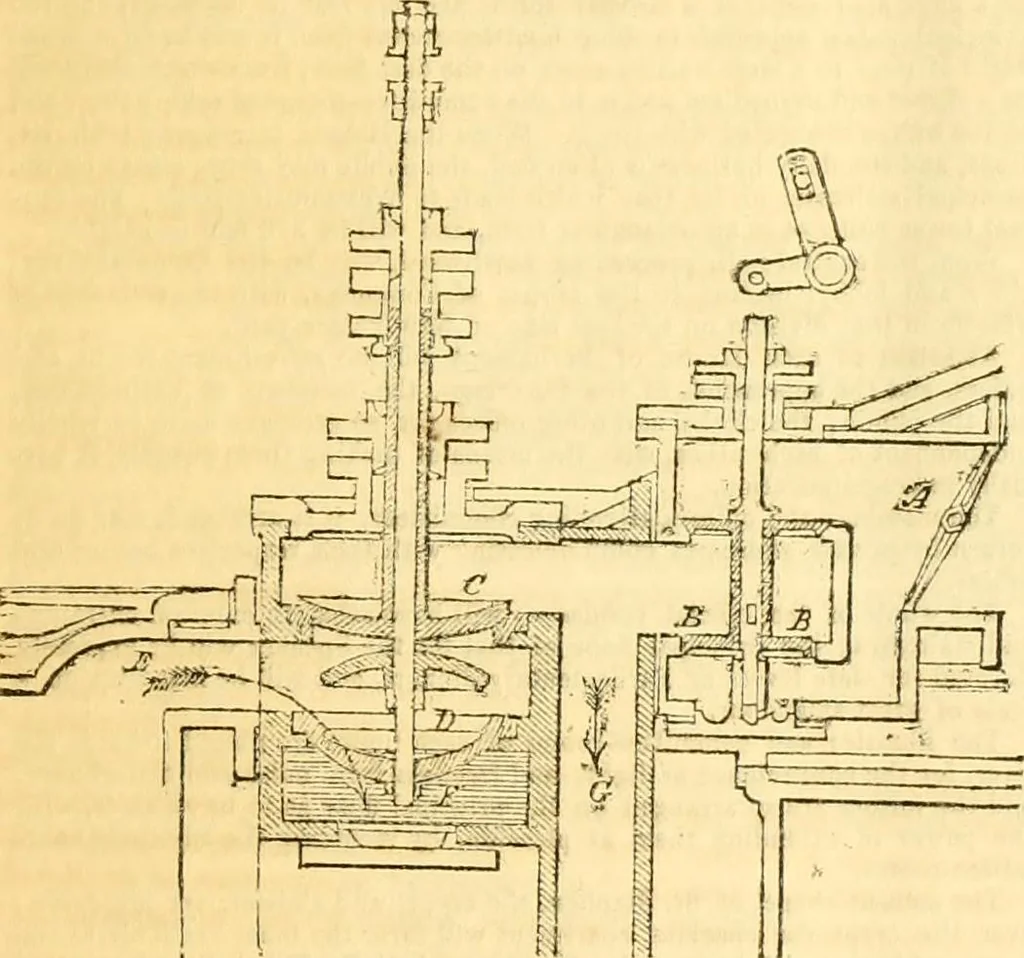

in a favourable manner the engines of theSpanish steamers Regent and Congress, built by the late firm of Ward,Stillman and Co., of the Novelty iron works, New York, and to intimate awish to have the details of their arrangement. In answer to which, I takepleasure in sending to you a detailed… … A, Throttle valve. B, Expansion valve. C, Steam valve. D, Exhaustvalve. E, Upper part of cylinder. F, Exhaust pipe. G, Steam pipe tolower valve. Length on deckBreadth .Ditto at water lineDepth of holdDraft of waterBurthen Feet. Inches.154 030 82S 814 68 6on tons. Frame of white oak, live oak,…
