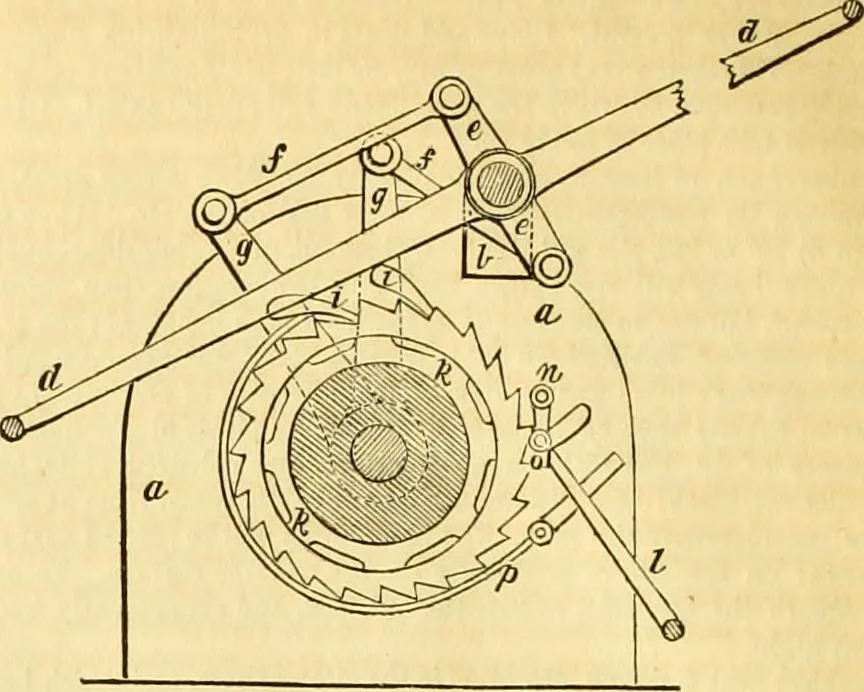

ing the cable ; a a, shows a portion of theframe side ; b, a plate boiled thereon, which carries one end of an horizontalshaft c; upon this shaft is firmly fixed the working lever d, and also an arme, to the extremities of which are attached one end of the connecting links//, the other ends being… … Fig. 4. temate link ; the intermediate links of the chain pass into a groove: J, is alever moving upon an axis n; to this lever is attached one end of cross bar o,which takes into the teeth of the ratchet wheels; p, is a friction band forretarding the motion of the barrel when letting out the…
