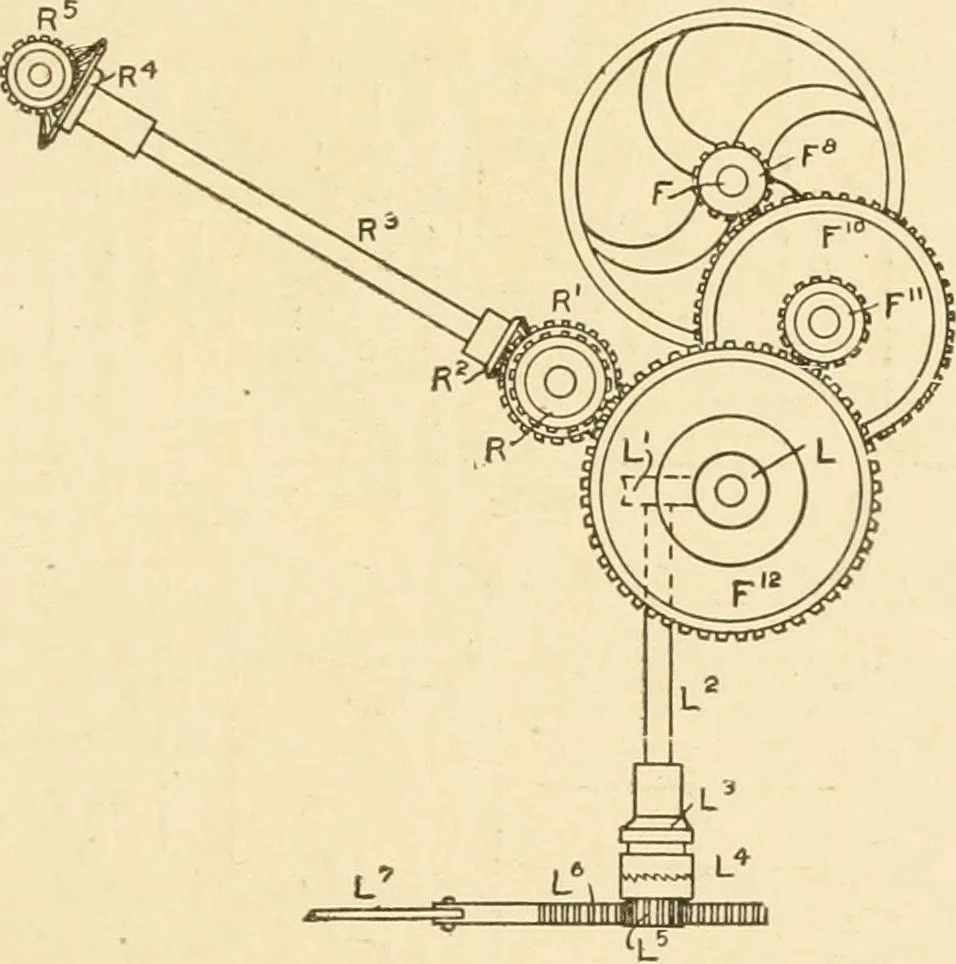

called,is accomplished as follows: When the carriage reaches the end ofthe draw, a pin drops into a slot in a rod, which is connected, bymeans of rods and levers, to the rack L, Fig. 160. Simultaneouslywith the dropping of the pin into the slot the belt is shipped fromthe third, a drawing-out… … Fig. 160. is fast to the shaft F, thus causing it to turn, and drives through F^,F^, F and F^^ On the shaft L to which F^- is fastened is a wormwhich meshes with a gear L^ on the end of the upright shaft L.Sliding on a pin on the lower end of the shaft U is one half of a clutchL^ which meshes with…
