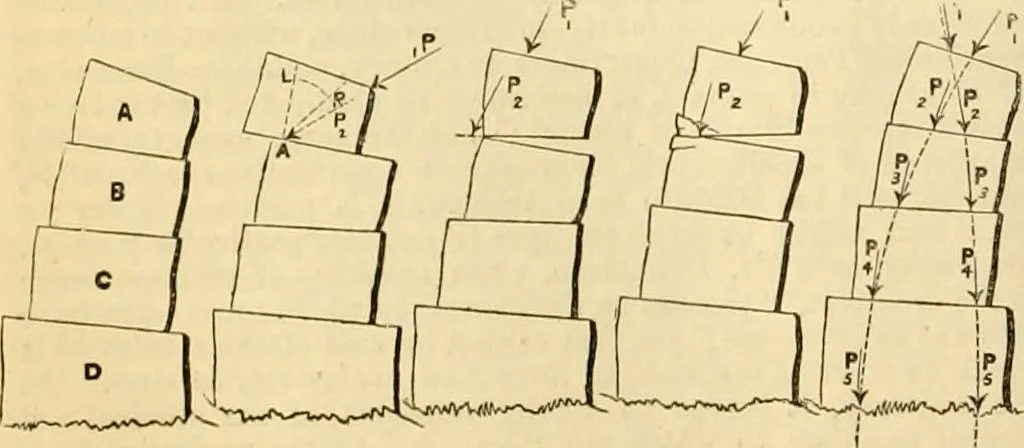

ditions of stability of an arch, actedupon by forces of any.,amount, applied in any position and directionin the plane of the section, or of an arch whose form is not similaron both sides of the crown. The effect of the adliesion of the cement is not taken in any caseinto consideration. Section I.… … Dlagra m 1. Diagram 2. Diagram 3. Diagram 4. Diagram 5. one upon another, as diagram 2;—secondly, by the blocks turningover on e upon the edge of another, as diagram 3 ;—or thirdly, by the yielding of the materials of which the structure is composed,as diagram 4. For the first effect to take place,…
