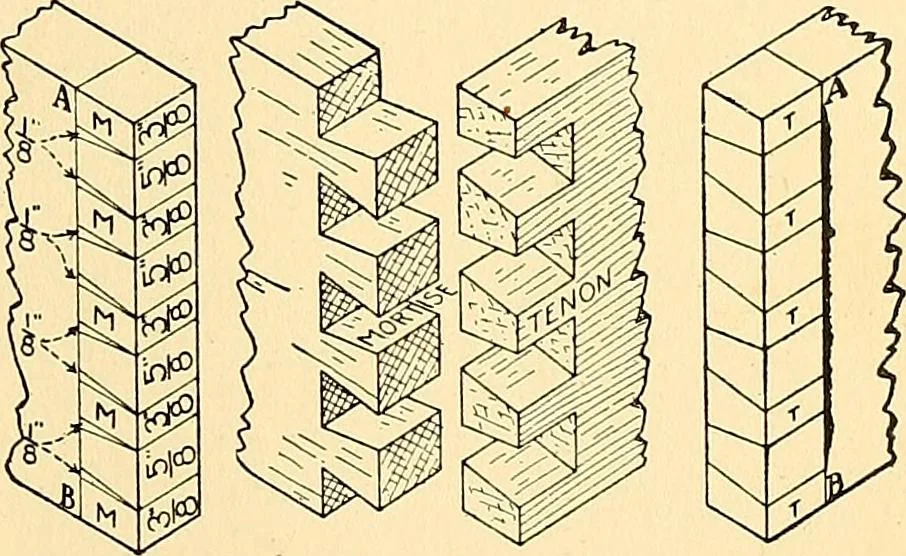

his reason it furnishes a splendid exercise for abeginner. The dovetail in modified forms is used in themanufacture of small boxes, and in the joining of thefront and sides of drawers, in which case it is all done bya machine. Figures 81 to 84 show the necessary steps for dovetail-ing the ends of… … Fig. 81. Fig. 82. Fig. 84. Fig. 83.— Details of the Dovetail-joint. and edges at a dis- FlGS> 8l~8tance from the end equal to the exact thickness of thetenon piece. Lay off spaces of | inch and | inch, alter-nately, upon this line and scribe lines parallel to theedges of the piece from these…
