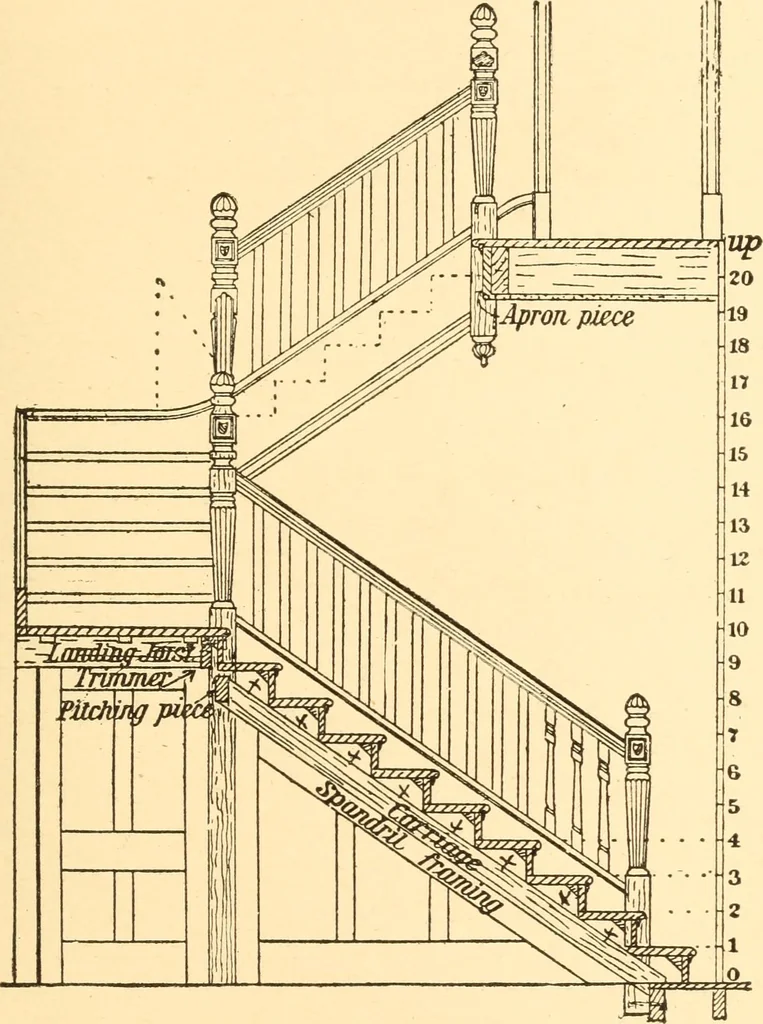

to feet Fig. 3. is shown both in landings and run of stairs, the pro-jecting ends of timbers are supposed to be resting onthe wall. A scale of the plan and elevation is attachedto plan. Fig. 4 shows the elevation in full with a story rodshown on the right, with the number of risers spaced FOURTH… … Fig. 4. a stair of this width there ought to be two other tim-bers, not perhaps so heavy as the central one, yetstrong enough to be of service, also to help carry the 1 f 2 COMMON-SENSE HANDRAILING lath or paneling which may be necessary in comple-ting the soffit. The strings being closed, the…
