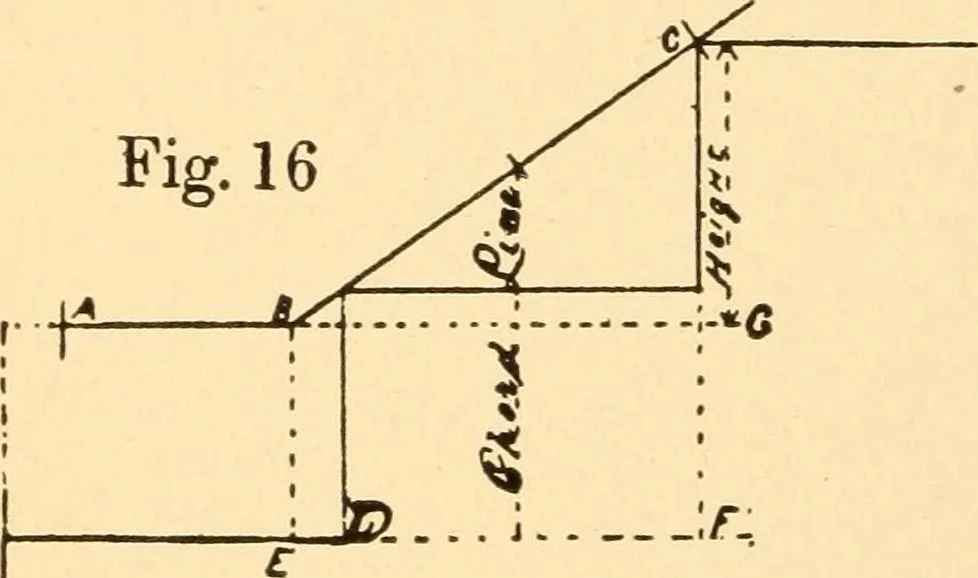

radius. Fig. 16 shows thetangents in position onthe pitch. To constructFig. 16, take the pitch-board and mark out thesteps as shown. Be-ginning at third riserand coming down,drawpitch-line CB from second riser D; mark distance DE,which gives angle B; draw level tangent BA, agree-ing with BA, Fig.… … FIRST METHOD 21 -FigAT. To construct Fig. 17,draw tangents ABC, andcurve line exactly likeFig. 15. In practicethis figure can be drawnon Fig. 15, and to avoidconfusion of lines it istransferred. ContinueAB to D; draw DC atright angles to DB; setup the height, GC, Fig.16. Connect ED at rightangles…
