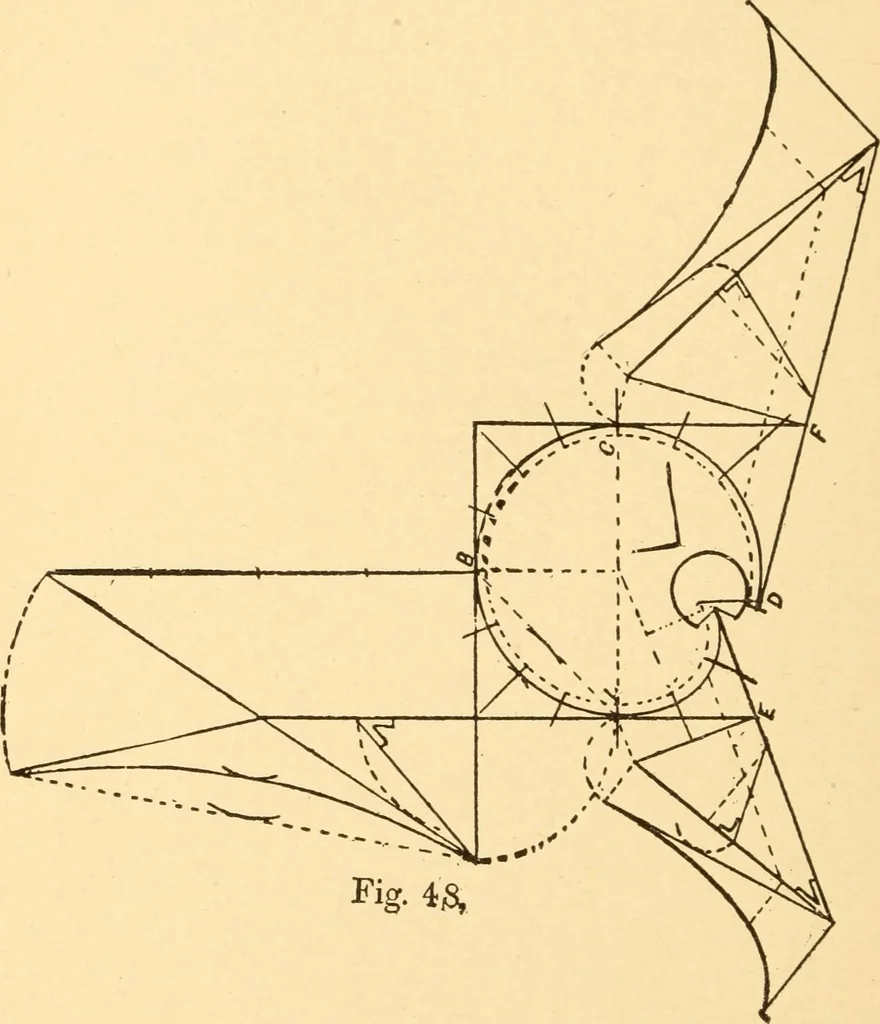

F%. 47 40 COMMON-SENSE HANDRAILING and Fig. 50 the landing wreath; these are drawn inthe manner as shown in previous examples, making … the width of treads to correspond with the pointswhere the risers cut the tangents in Fig. 48. Theseelevations also give the exact height as shown; the firstwreath in Fig. 49 is lifted for the newel, and the land-ing wreath in Fig. 48 runs half a rise above the floor.The wreaths AB and BC simply…
Stair building · Hand-railing
