Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 205

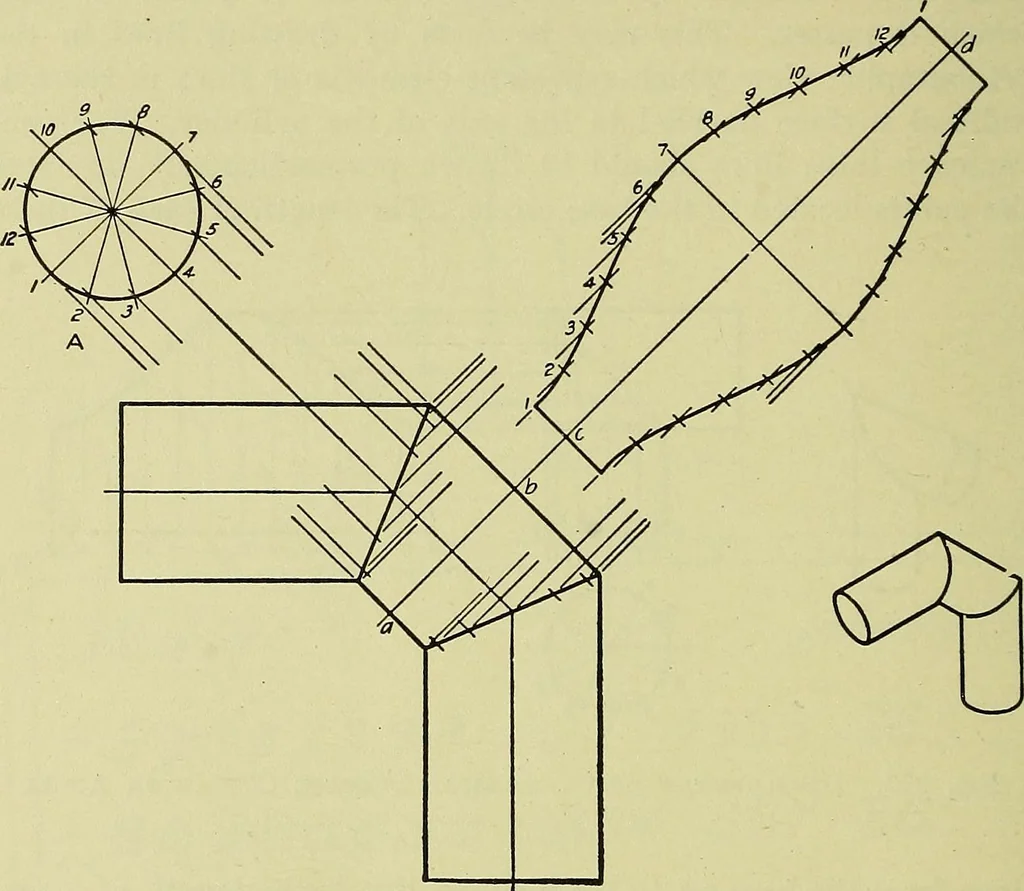

equal to a 7 in the pattern. Here again itis necessary that these lengths be transferred in consecutiveorder. 200 MECHANICAL DRAWING When both ends of the cylinder are cut at an angle as inFig. 214, neither end will develop into a straight line. For thepurpose of determining the length of the… … Fig. 214. Type Problem. Developmext of Cylindrical Surface Cut atBoth Exds line representing this imaginary base, c d. Fig. 214. The pointson the curved lines in the development are located by using thisimaginary base to measure from. If the base is centrally locatedbetween the two cut ends, points…
Mechanical drawing
