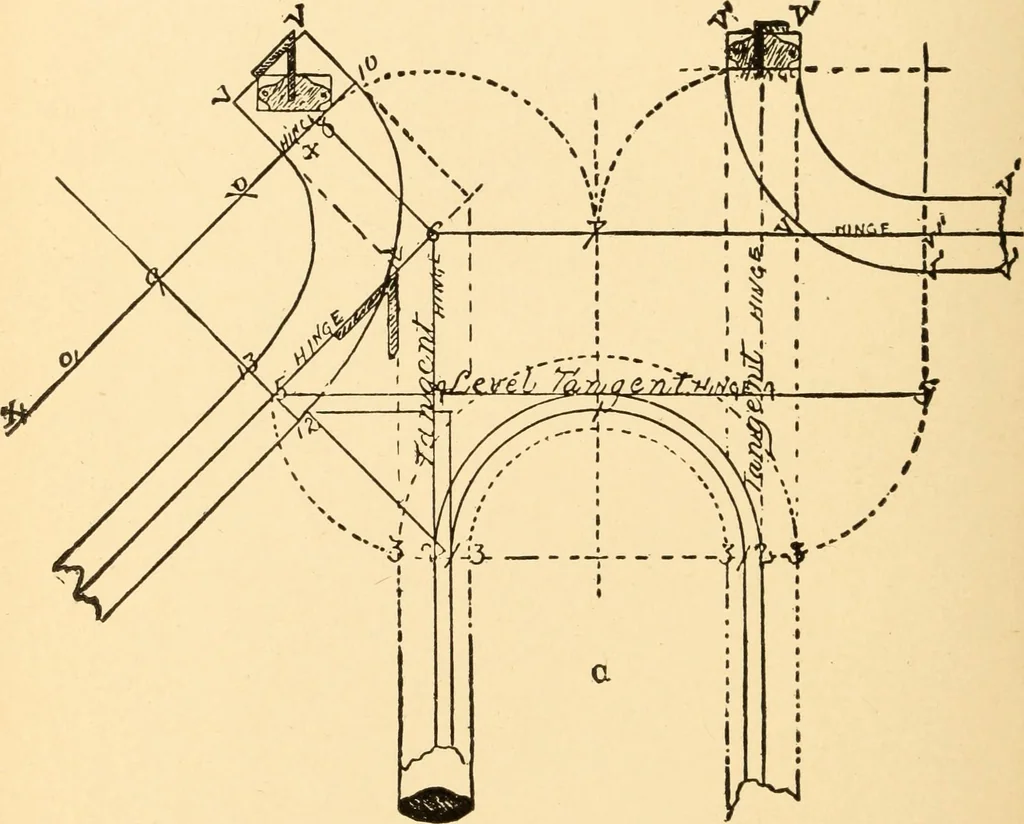

nd cut, locking the respective steps together,so as to provide a continuous strength to the entireconstruction. so COMMON-SENSE HANDRATLTNG The following diagram C shows a very easy way otgetting out stair-rails over cylinders, i-i-i being theface of cylinder, 2 the center of baluster from whichthe… … DIAGRAM C. A RAIL AROUND A CYLINDER Commence by making the tangent as shown; placehalf of the rail each side of 2-3 3; draw level tangentright and left indifferently; take the comoass. stand SECOND METHOD 51 on left, describe a curve from the spring line at 2, tocut level tangent at 5; do the same…
