Common-sense stair building and handrailing (1903)

Hodgson, Frederick Thomas, 1836-1919 · Chicago, F. J. Drake & Co · leaf 57

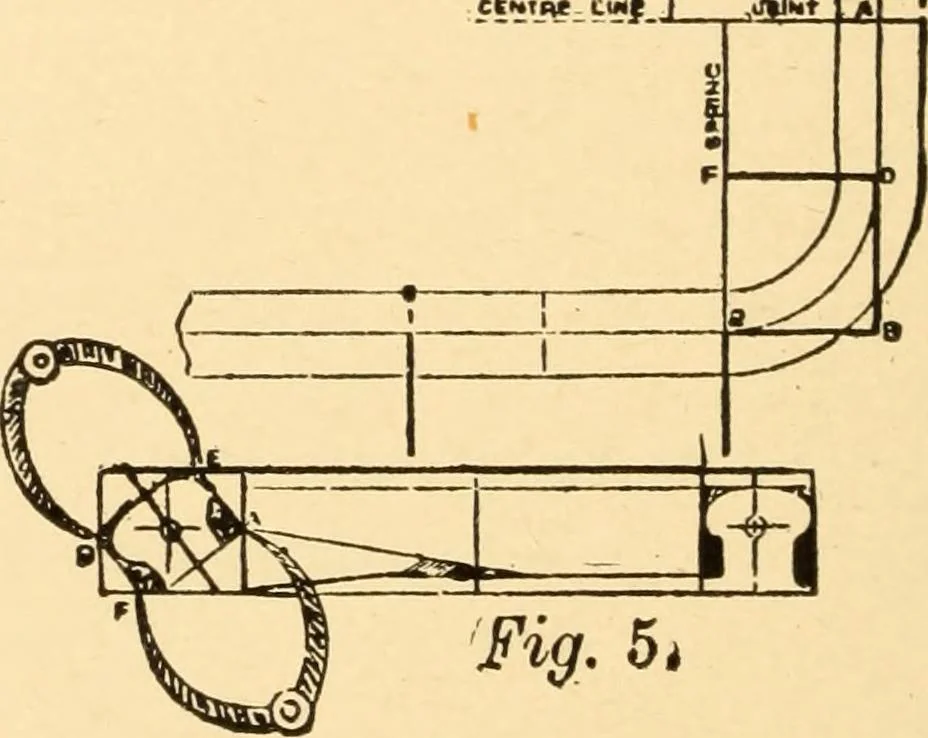

An illustration from Common-sense stair building and handrailing, 1903, leaf 57 — Fiff. 6. h • fetMflW^ CWf_ ^\ I- *A^—i … DIAGRAM D. HALF-SPACE RAILING well is a straight level line. Fig. I, diagram D,shows a large well with the risers 2 and 3 placed half astep from B and C; these four steps are shown insection at Fig. 2. Draw the center lines of rails i, SECOND METHOD 53 2, 3 and 4, and they will meet at A, which is…
