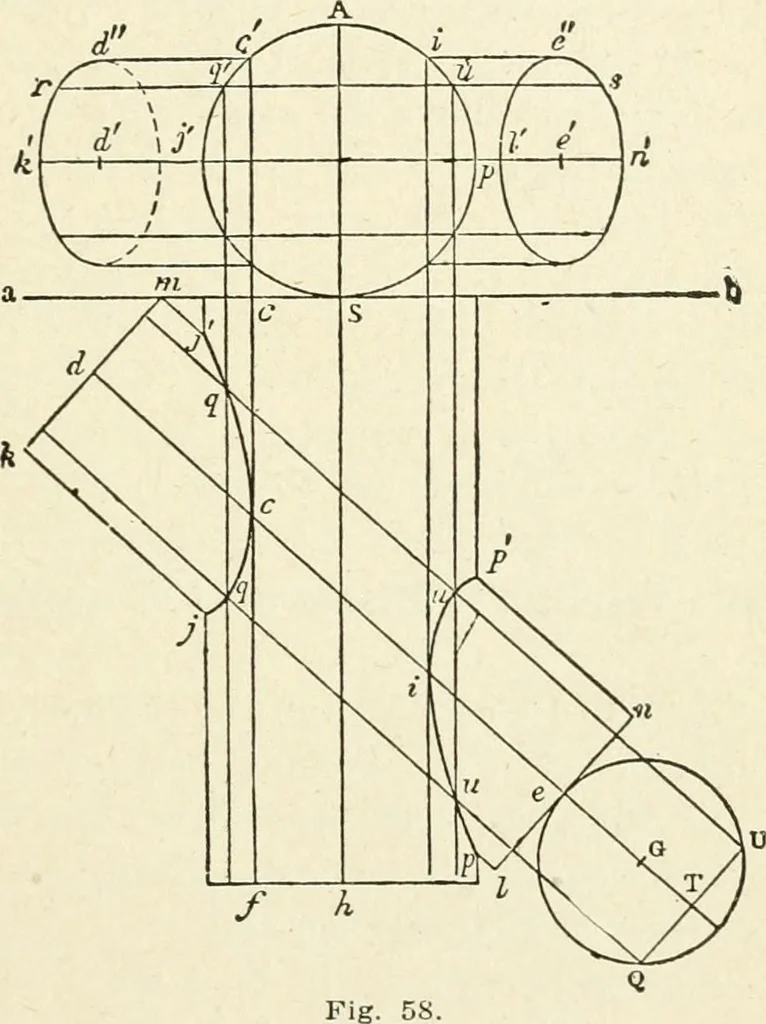

t. Without any previous operation, six ofthose points of intersection can be obtained. For ex-ample the point c is situated on d e, the highest pointof the smaller cylinder; consequently, the horizontalprojection of c is on d e, the horizontal projection of SOLID GEOMETRY 89 d e, and it is also on… … obtained. The point j is on the line k 1, which is in thehorizontal plane passing through the axis d e, the hori-zontal projections of k .1 are k 1, and its opposite m n;therefore in letting fall perpendiculars from j p, theintersections of these with k 1, m n, give the points j j, 90 MODERN…
