Common-sense stair building and handrailing (1903)

Fred T Hodgson · Frederick J. Drake and Co. · leaf 58

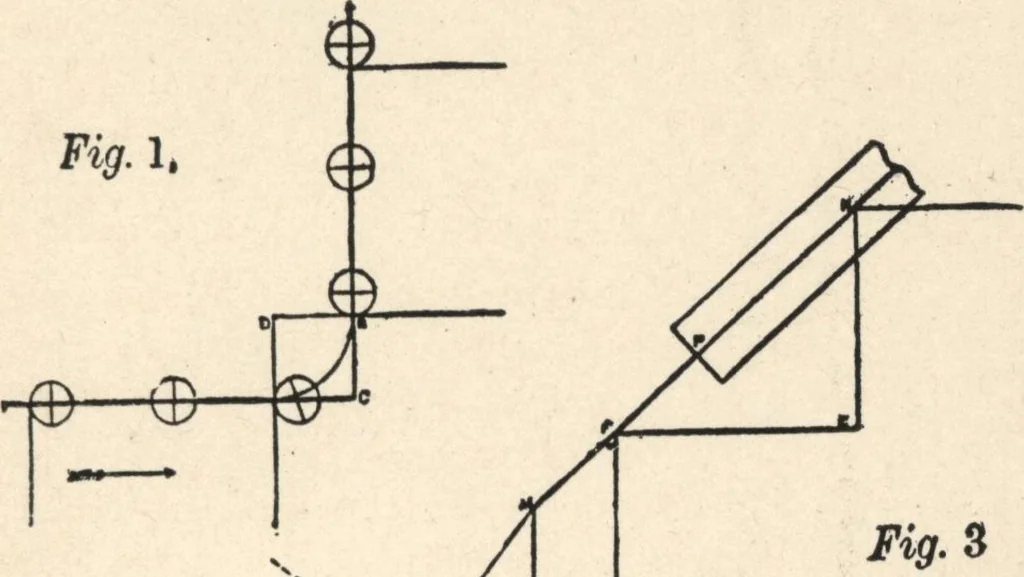

An illustration from Common-sense stair building and handrailing, 1903, leaf 58 — , where thespace for the steps is confined for room. Fig. I, diagram E, shows the center line of rail andthe plan of stairs. Fig. 2: Draw the tread, DE, and riser, EA; make SECOND METHOD 55 ACB equal to ACB, at Fig. i; draw the riser, BF, thetread, FG, and the riser, GH; draw DA and CM; drawHF to…
