Common-sense stair building and handrailing .. (1913)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, F. J. Drake & co · leaf 13

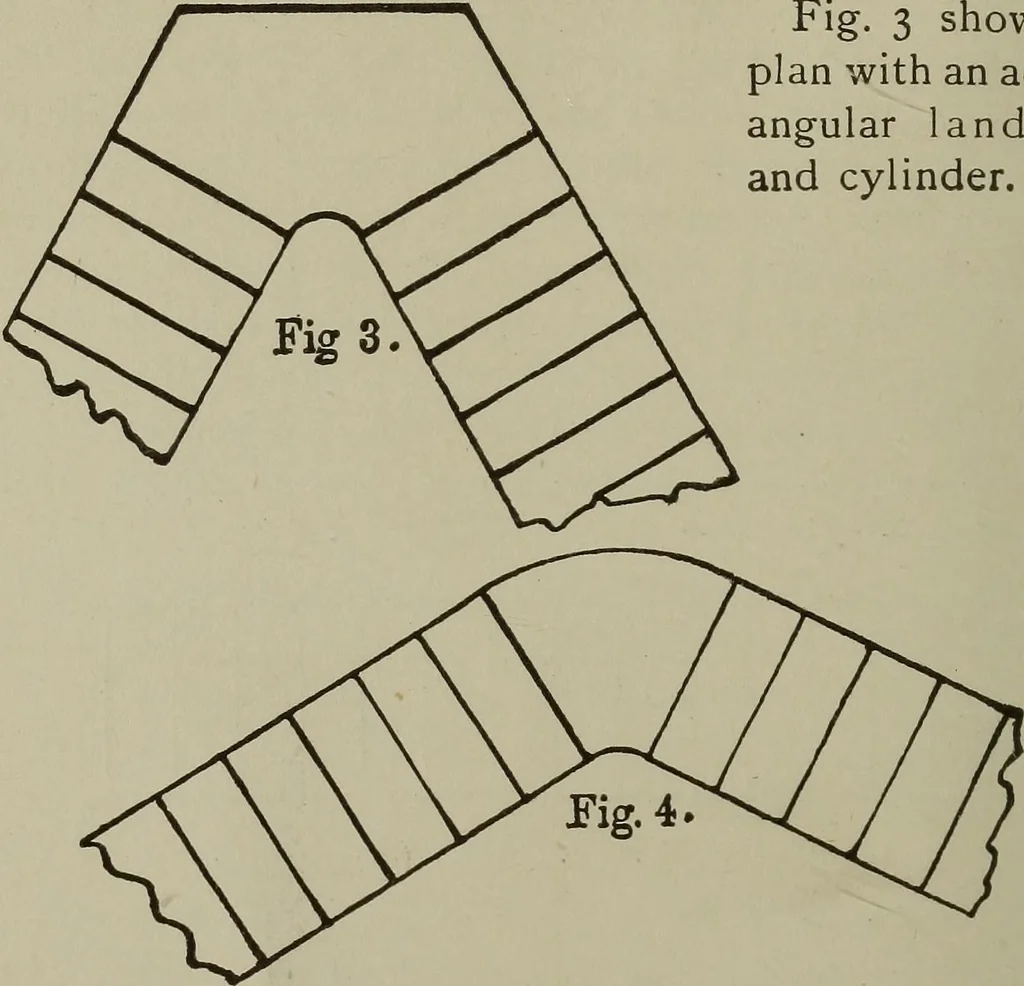

rovide for such a contingency amethod of laying out and constructing a handrail willbe illustrated and described at the close of thistreatise. Fig. 1. 3 Fig. I exhibits the plan of a straight stair with anordinary cylinder at the top, provided for a return railon the landing. It also shows a… … Fig. 4 shows the same kind of stair as Fig. 3» onlybeing at an obtuse angle. Fig. 5 ): Fig. 5 exhibits a stair having a halt-turn with tworisers on landings. FIRST METHOD 13 Fig. 6, Fig. 6 shows a plan of a quarter-space stair withfour winders.
Stair building · Hand-railing
