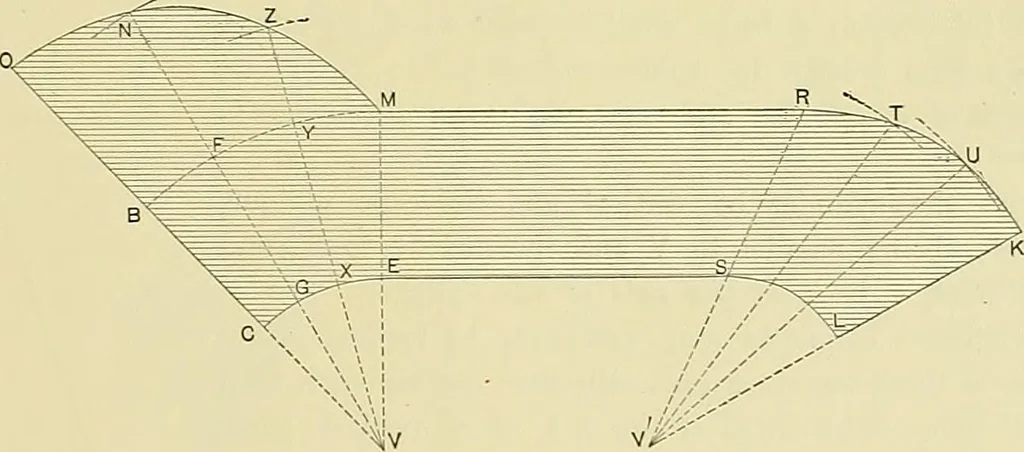

The development. Fig. 293 is the development of one-half of the tub. EM equals bc; VOequals vo; YZ equals vz, the true length of vz, obtained, as in previous constructions, by car-rjing z to s,, thence to level of z. Similarly at the other end. (Reference Articles 191, 408, 418.) 437. The…
