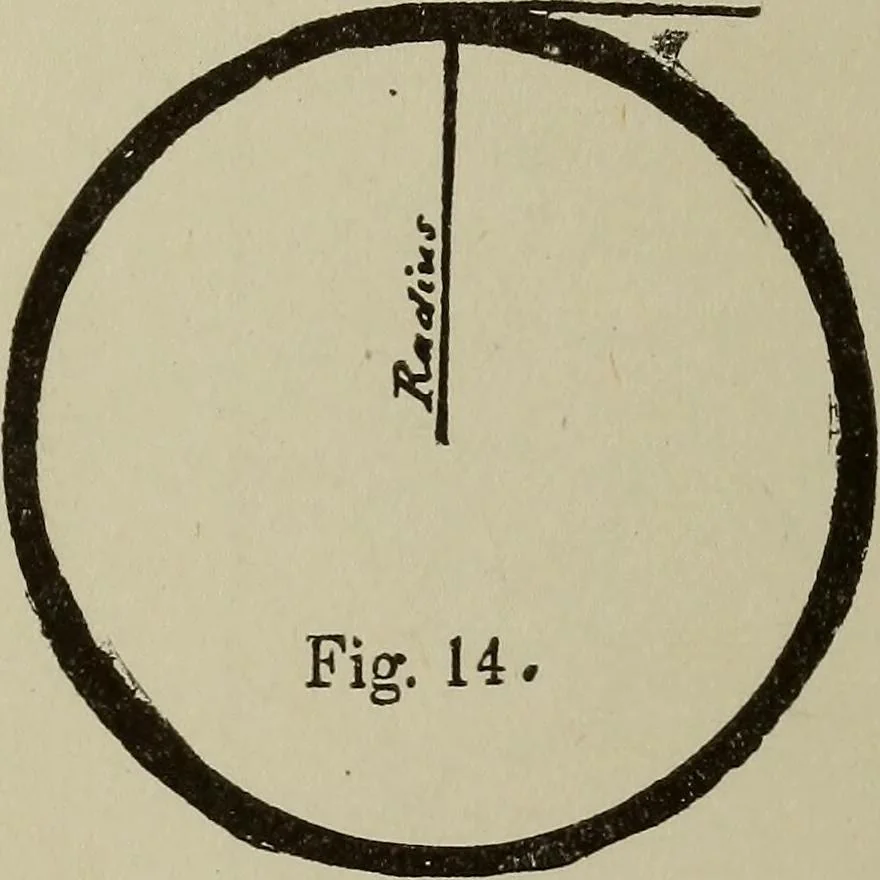

tangents on the pitch, and which, when placed in position, would stand plumb over ABC. i8 COMMON-SENSE HANDRAILING To construct Fig. 13, proceed in the same manner asin Fig. 12, until the height is located. It will be noticed that in this exam-ple BG is lifted higher, Tatffent … making the pitch-lines andtangents FG and DG of un-equal lengths. To obtainthe angle continue BG toH, making BH equal toEF; from H draw the lineHJ to any distance at rightangles to DG. With thecenter G and radius GFdescribe an arc cuttingthe line HJ at S; join SG and SD and the angle is com-pleted.…
