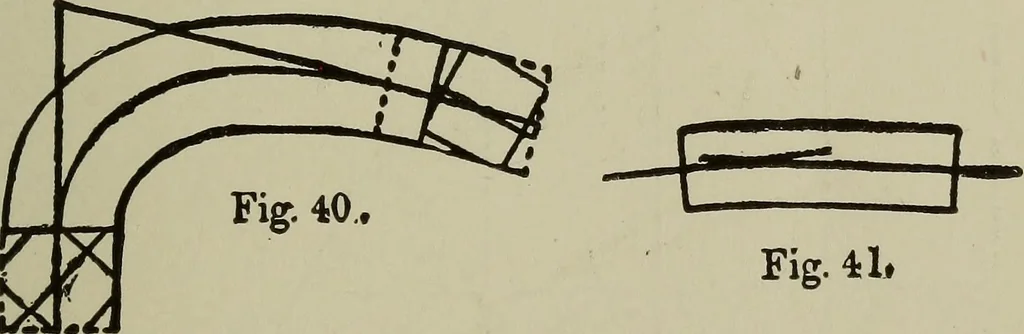

c, and KM should equal ID. ConnectLM and the angle is formed for the mould. The dottedordinates give the springing line and a point throughwhich to bend the strips to obtain the curve. Thebevel for lower joint is found at K. To obtain thebevel for the upper joint draw a line from K parallelto ML.… … Fig. 40 shows the application of bevels, the upperbevel cuts shown through from the outside in all caseswhere the angle BCD, Fig. 39, forms an acute angle;when the angle is obtuse the bevel is applied fromthe inside, the lower bevel in all cases remains thesame in application. Fig. 41 shows the…
