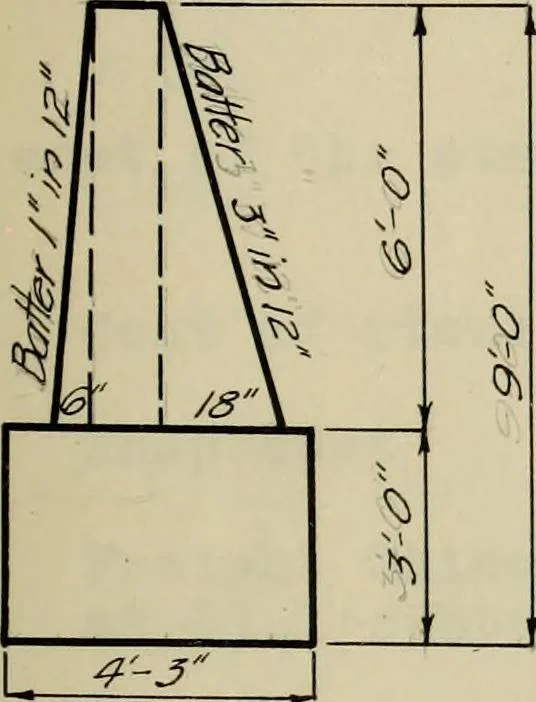

0 Screws and Nuts, 10 per cent 841.7280.8112.3 Total Weight of Pins 4 Pedestals Roller Pedestals 600# eachFixed Pedestals 275# each Total Weight of Pedestals 2 Stringer BearingsI-Beam 8xl8# 18 0 18.0 1,200.0550.0 648.0 4 Guard Pails Channels 5x6 1 2~ 18 0 6.5 3,744.0 Reinforcement in Floor Rods 17… … 46 The volume of the south abutment was computed by separatingthe wing walls from the body of the abutment, ^ne cross-sectionalarea of the body is 221.1 square feet, see Plate VI, and its length22 feet. Its volume is 221.1 x |^ = 180.1 cubic yards. The volumeof the wing walls was determined by…
