Comparative efficiencies of steam engines and steam turbines in small units (1909)
Cristy, Harold E, Gardiner, Lion, Reece, Wade W, Weiss, John Frank · leaf 16

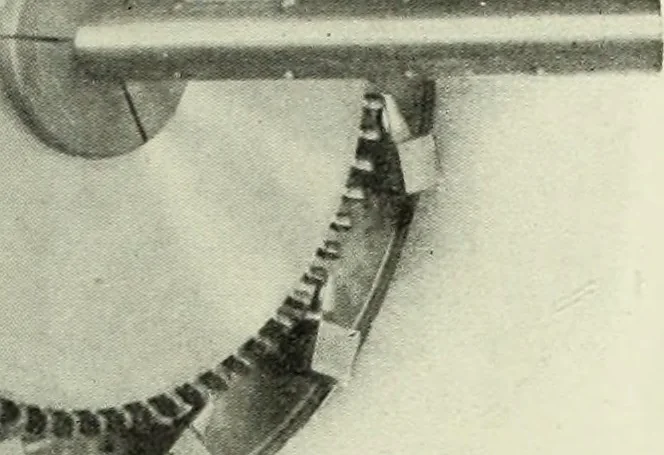

Fig. 1. 4. … DISK OR BUCKET WHEEL AND NOZZLES. Pig, 2. COMPLETE ROTOR Fig. 3. 5. The shell of the turbine is made up of two endcastings and rings between which are diaphragm castings, whichcontain the nozzles, and divide the cylinder of the turbine intoseparate stages. The end castings carry the weight of…
Steam-engines · Steam-turbines · Theses
