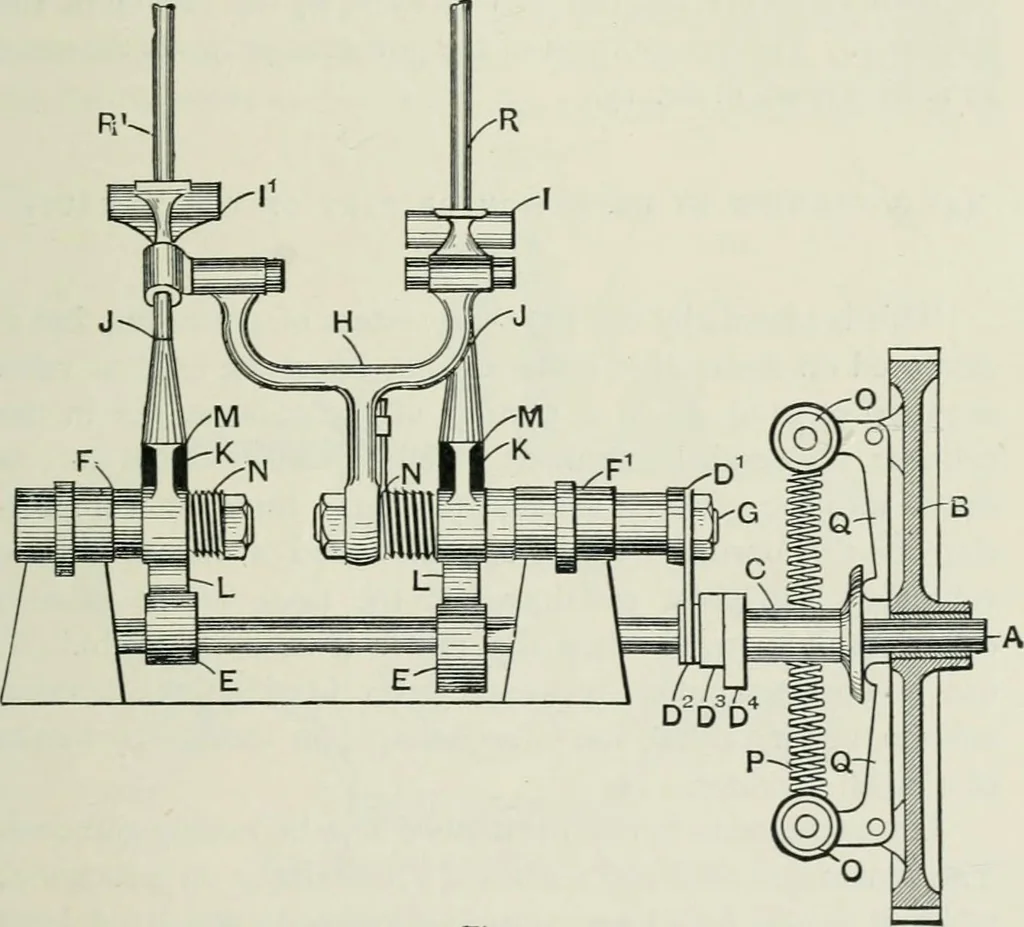

Fig. 16 THE PETROL ENGINE XT] which shdes on the half-time shaft a. p is a spring betweenthe weights o o, which offers a check on the tendency of thelatter to fly outwards. As the pace of the motor increases, thecentrifugal force developed overcomes the resistance of thespring p, the weights move… … Fig. \j hammer d i. Now the bracket h and the hammer d i areparts of the shaft g, thus, when the hammer is pushed outwardby the projecting portion of the cam d 3, the bracket H ispushed forward, and, in turn, pushes forward the plunger Rand with it the digger j, as before described. As regards…
