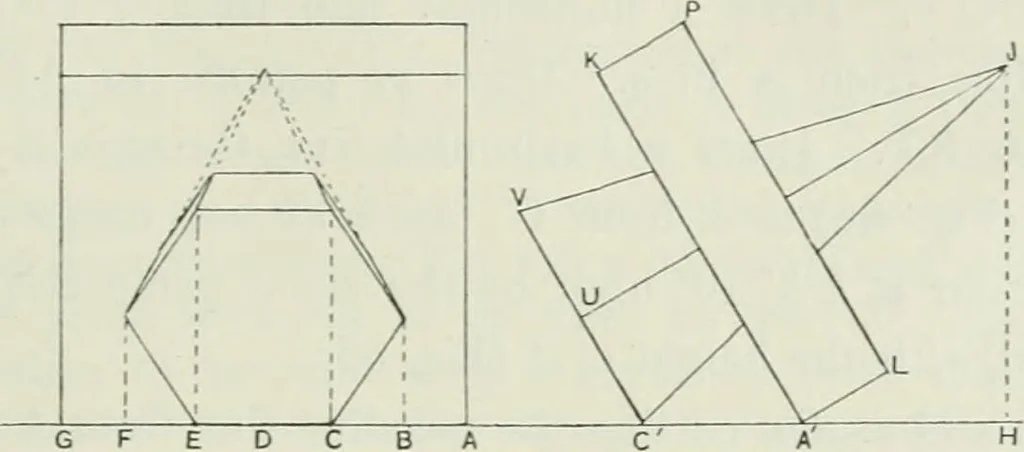

t. Distance of B.P. = 13. Height of eye - 4. Fig. 67. Find tlie necessary working lines a.nd points (Prob. 5), theI D.P. and the point A (Prob. 10). Draw a line from C.V. through A till it meets the G.L. ina. Set off rtC = twice AC (Fig. 06), and join C to C.V. Set IV TRIANGLES, rOLVGONS, PRISMS,… … Fig. 66 Fig. 66, and join them to the h D.P. by lines meeting thereceding line from C in the points b, c, d, e,f, g. Draw the lineC^ parallel to CV in Fig. GO, but of double its length, andbisect it in U. Draw lines from U and Y to (,.Y., meetinglines drawn from the points h, c, e, f, parallel to…
