Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 108

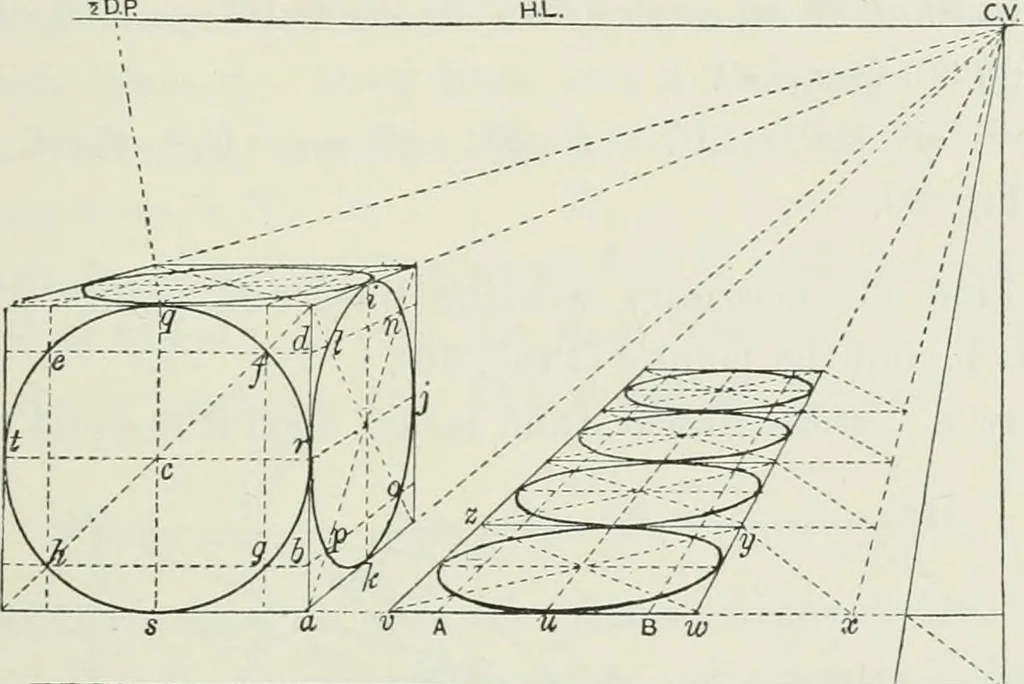

de of the square in d and b. CH. V CIRCLES AND OTHER CURVES, CYLINDERS, AND CONES 85 Draw lines from d and h to C.Y. to cut the diagonals on theside of the cube in the points /, w,|), 0. We have now eight points in the right-hand circle, viz.r, I, i, n,j, 0, k, p. Draw a fair curve through these… … a. V A W BW G.L Fig. 68 2. Find the point u (Prob. 10). Set off one and a halfperspective feet on each side of u to determine the points v andIV. Join these points to C.V. Set o& uw equal to one and a halfperspective feet, and join x to C.V. Draw a line from x to i D.P. to meet the receding…
Perspective
Internet Archive · OCAD University Library · Public Domain Mark 1.0. Free to use for anything.
