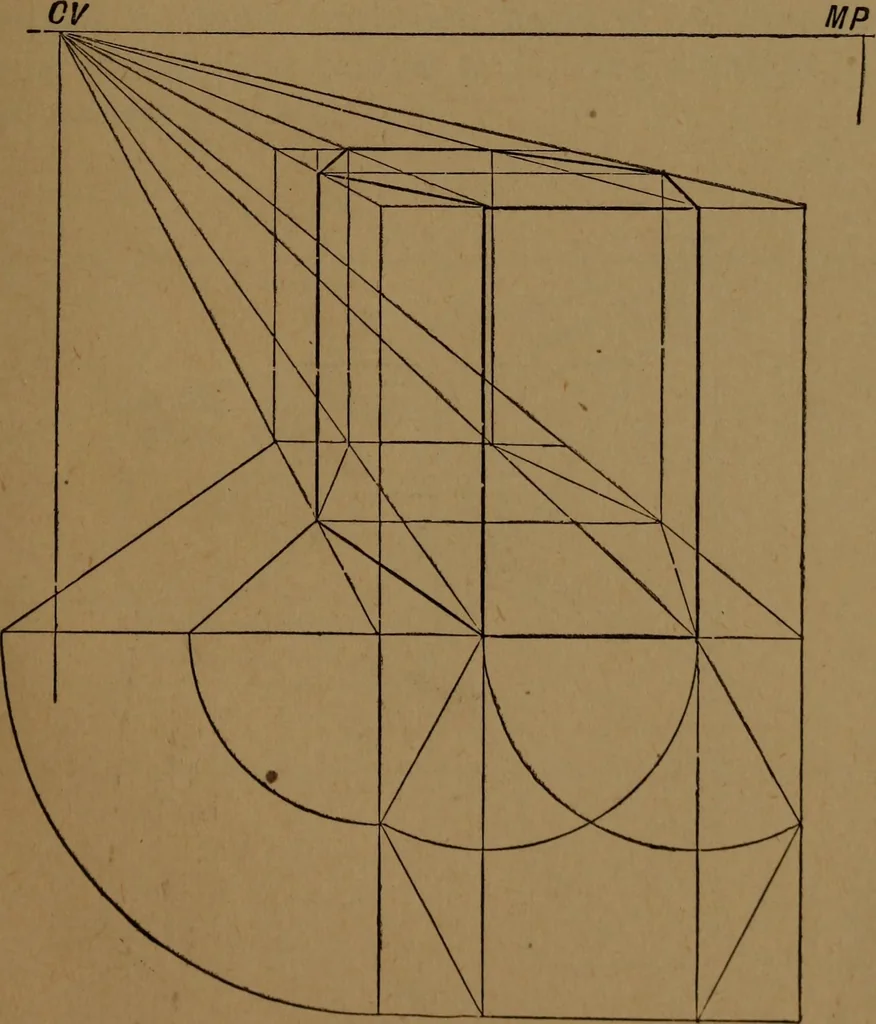

to AB and equal to CL; simi-larly draw DF; join F C.V., E C.V. and A C.V., also B MPand L MP; through M draw MG- parallel to AE, meetingE C.Y. in G; draw GH parallel to EF; join HD, AG andGK, completing the prism. Then AK = AB - AC = BC == 2^Hence AG - KG = AK, and GM - E A = LC - required… … Fig. 43. 74 DRAWING. Draw the plan in proper situation, as already explained;then draw the hexagons, one on G.P., the other 4 above it;then join similar angles in each, forming the required hexagon.(Fig. 43.) THE CYLINDER. 75 TThe C^rlinder. The drawing of the cylinder differs from that of the…
