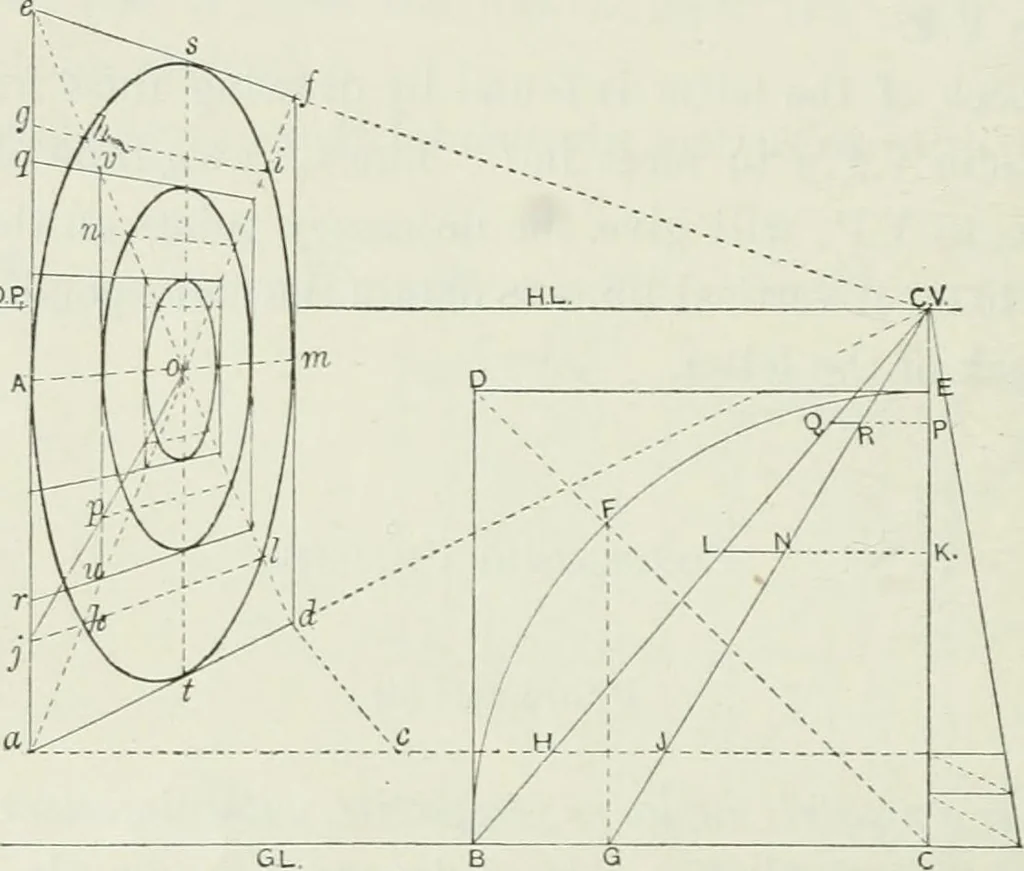

adfe is the square circuni- 94 COMPLETE PERSPECTIVE COURSE scribiug the largest circle. Draw diagouals to this square inter-secting in 0. Draw the perpendicular $t through o, also the lineAm towards C.V. With any convenient point C as centre, and with a radius of5, draw a quadrant. Describe about… … Ficr. 73 Set off aj and eg each equal to HJ, and draw/ and ^ to C.V.to meet the diagonals of the square in the points A, /, h, i.Draw a fair curve through the points A, h, s, i, vi, I, t, h. Thisis the perspective of the largest circle. ]Mark off q and r, each three perspective feet from A, and…
