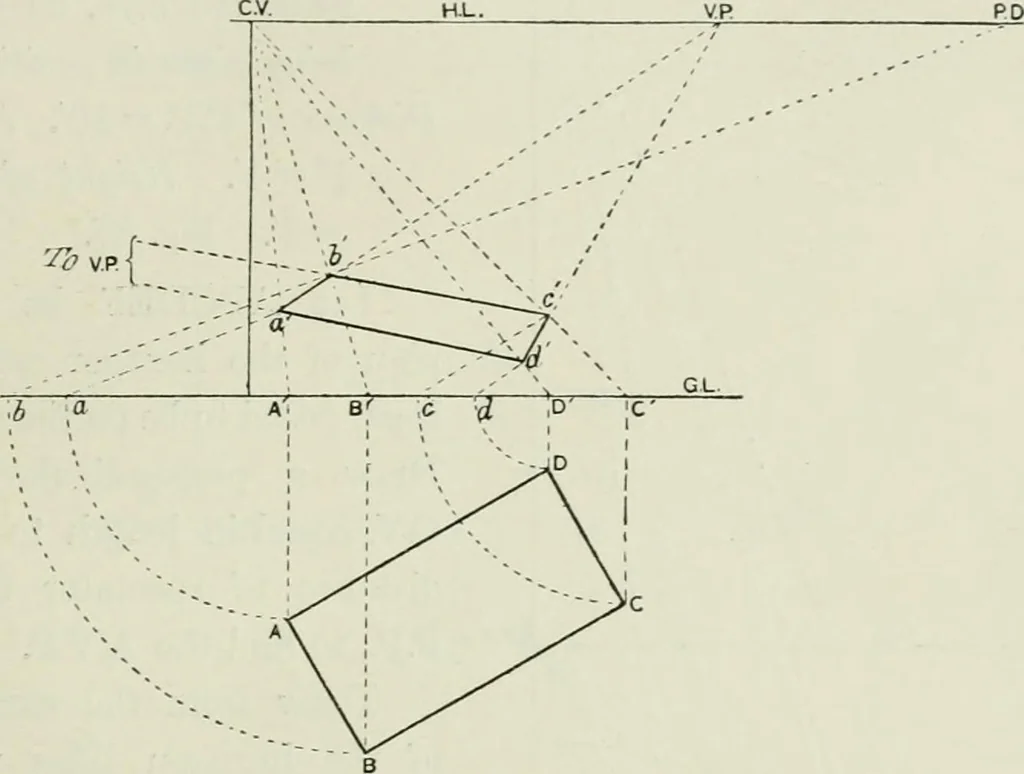

t of eye = o. Scale Y = !• Tig- 85. Let ABCD be the plan of the rectangle. Draw lines fromeach corner perpendicular to the G.L., and meeting it in thepoints ABDC. With A as centre and radius AA, describe anarc to meet G.L. in a. Draw lines from A to C.Y., and from a to THE DIRECT METHOD OF… … Fig. 85 should find, since they are receding Iwrizontal lines [20], thatthey would meet in Y.P.s on the H.L. If we were to make a drawing of Fig. 85, and crease tliepaper at the G.L, so ^that the plan would lieon a horizontal plane,and the perspectivedrawing on a verticalplane, as shown in Fig.86,…
