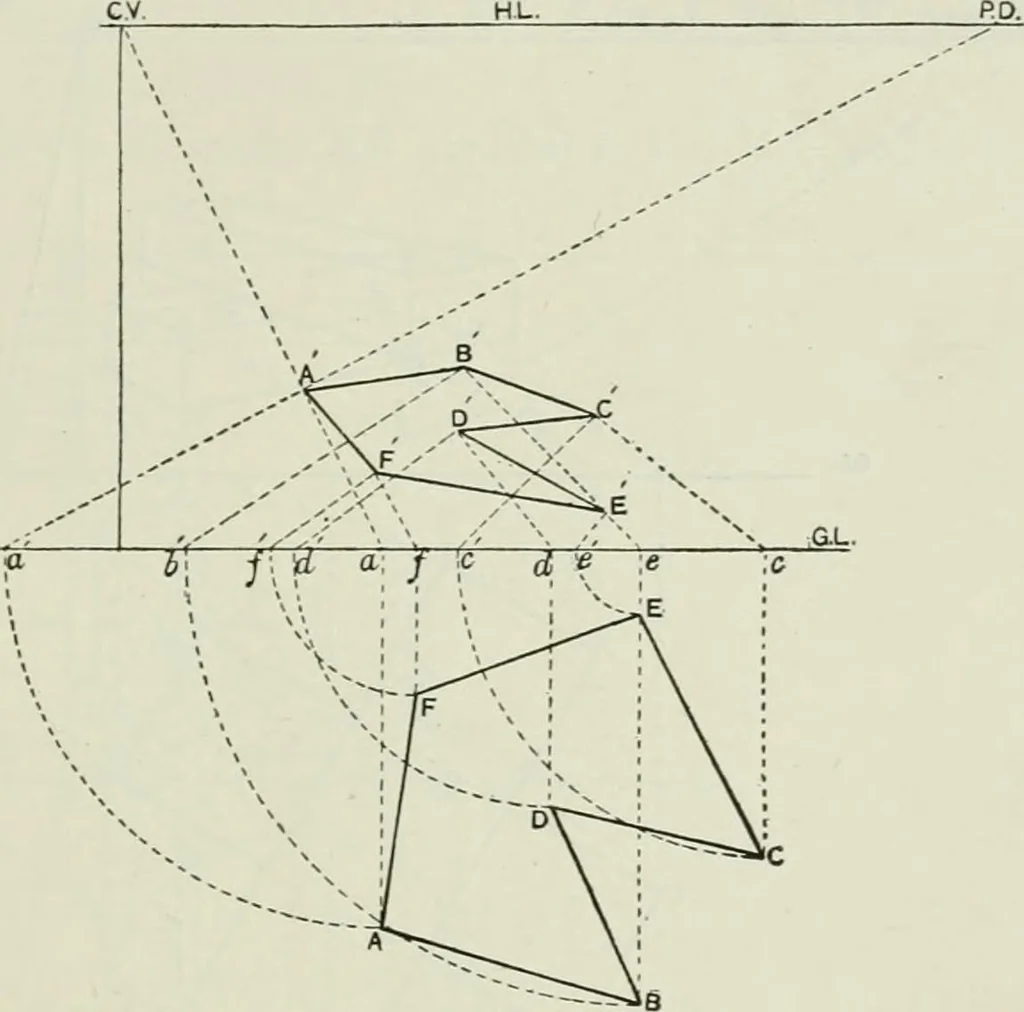

oin these points,as shown. Problem 38 To cleterrninc the true shape of an irregular plane fgire from its perspective representation.Distance of P.P. = 10. Height of ege = 6. Scale \ = 1. Fig. 88. Let ABCDEF be the perspective view of the figure. THE DIRECT METHOD OF PERSPECTIVE 119 Draw lines from… … Tier. With a as centre, and radius aa, describe an arc to meet aperpendicular from a in A. Find the other points in a similarmanner, and join them, as shown. Problem 39 2wo rectangular solids, A and B, each 6 X 2 x 1, being given in position on plan, it is required to draio the same in…
